Metal Processing and Automation in the Smallest Space CORiTEC® 250i PRO series
MONO-BLOCK CAST frame
New type of closed mono-block cast frame
Tools
with 6 mm shaft
10-FOLD AUTOMATIC TOOL CHANGER
Changable tool magazine
powerful milling spindle
60.000 rpm, 1.0 kW
Metal Processing in Smallest Space CORiTEC® 250i PRO+ Highlights
- Wet and dry machining possible
- Control PC and touch screen integrated
- 2-fold ionizer integrated
- Metal processing
- High precision due to integrated temperature compensation
- Powerful high frequency spindle
- Minimal footprint
- Auto calibration
- Automated cleaning function
Fold
tool changer
mm
shaft tools
kW high
frequency spindle
Axis
machining
CORiTEC 250i PRO+ Maximising Performance
The perfect symbiosis of highly stable as well as low-vibration mono-block cast frame, optimally coordinated drives and the high-performance spindle allow perfect machining of metal blanks for the first time in this compact machine segment. In addition to excellent production quality, the CORiTEC 250i PRO+ impresses with maximum application range and an attractive price-performance ratio.
MONO-BLOCK CAST BODY
Modern, closed mono block casting body for Stability and Precision
TOOLS
with 3mm shaft
FULL AUTOMATION
7 blanks in a blank magazine, changeable
16-FOLD Automatic TOOL changer
Changeable tool magazine
Automation In Smallest Space CORiTEC® 250i Loader PRO Highlights
- Blank and tool magazine exchangeable
- Wet and dry machining possible
- Control PC with touchscreen integrated
- 2-fold integrated ionizer
- Processing of prefabricated abutments
- High precision due to integrated temperature compensation
- High-frequency spindle
- Minimal footprint
- Auto-calibration
- Automated cleaning function
Fold
tool changer
Fold
blank changer
mm
shaft tools
Axis
machining
CORiTEC 250i Loader PRO Maximising Performance
The CORiTEC 250i Loader PRO sets new standards when it comes to application variety. The system shows its strengths both in the automatic blank and tool change functions as well as in the dynamic milling and grinding process during wet and dry milling.
Full Denture
Crown, Bridge
Hybrid abutment
Inlay, Onlay, Veneer
Metal Processing And Automation In Smallest Space Wide Range of Applications
- Zirconia
- Pre-milled Abutment (Ti)
- Pre-milled Abutment (CoCr)
- Cobalt-chrome (CoCr)*
- Glass ceramic
- Lithium disilicate
- Hybrid ceramic
- Sintered metal
- Composite
- PEEK
- PMMA
- Wax
* only by CORiTEC 250i PRO+
Blank Holder
Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i PRO+ impresses in all areas.
- Closed blank holder for high stability
- Processing of all common materials in blank shape
C-Clamp Holder
Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i PRO+ impresses in all areas.
- Half-open blank holder
- Enables 5-axis machining up to 90 degrees axis adjustment
- Complex end face machining possible

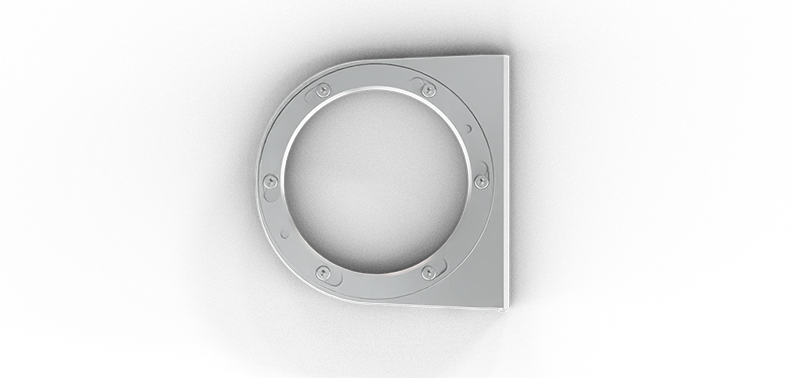

Blank Holder
Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i Loader PRO impresses in all areas.
- Closed blank holder for high stability
- Processing of all common materials in blank form (metals only as prefabricated abutments)

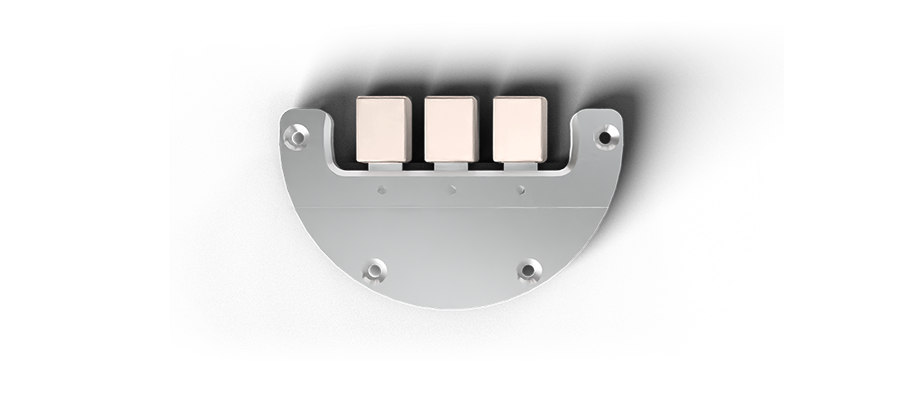

3-fold Glass Ceramics Fixture
Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i PRO series impresses in all areas.
- Processing of up to 3 blocks at once possible
- Processing of all common materials (e.g., glass ceramics & lithium disilicate)
6-fold Glass Ceramics Adapter
Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i PRO series impresses in all areas.
- Processing of up to 6 blocks at once possible
- Processing of all common materials (e.g., glass ceramics & lithium disilicate)
6-fold Pre-milled Abutment Holder
Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i PRO series impresses in all areas.
- Processing of up to 6 pre-milled abutments at once possible
- High accuracy of fit due to predefined implant interfaces
- Different kinds of abutment systems available (e.g., nt-trading, DESS, Medentika or Zfx)
Indications

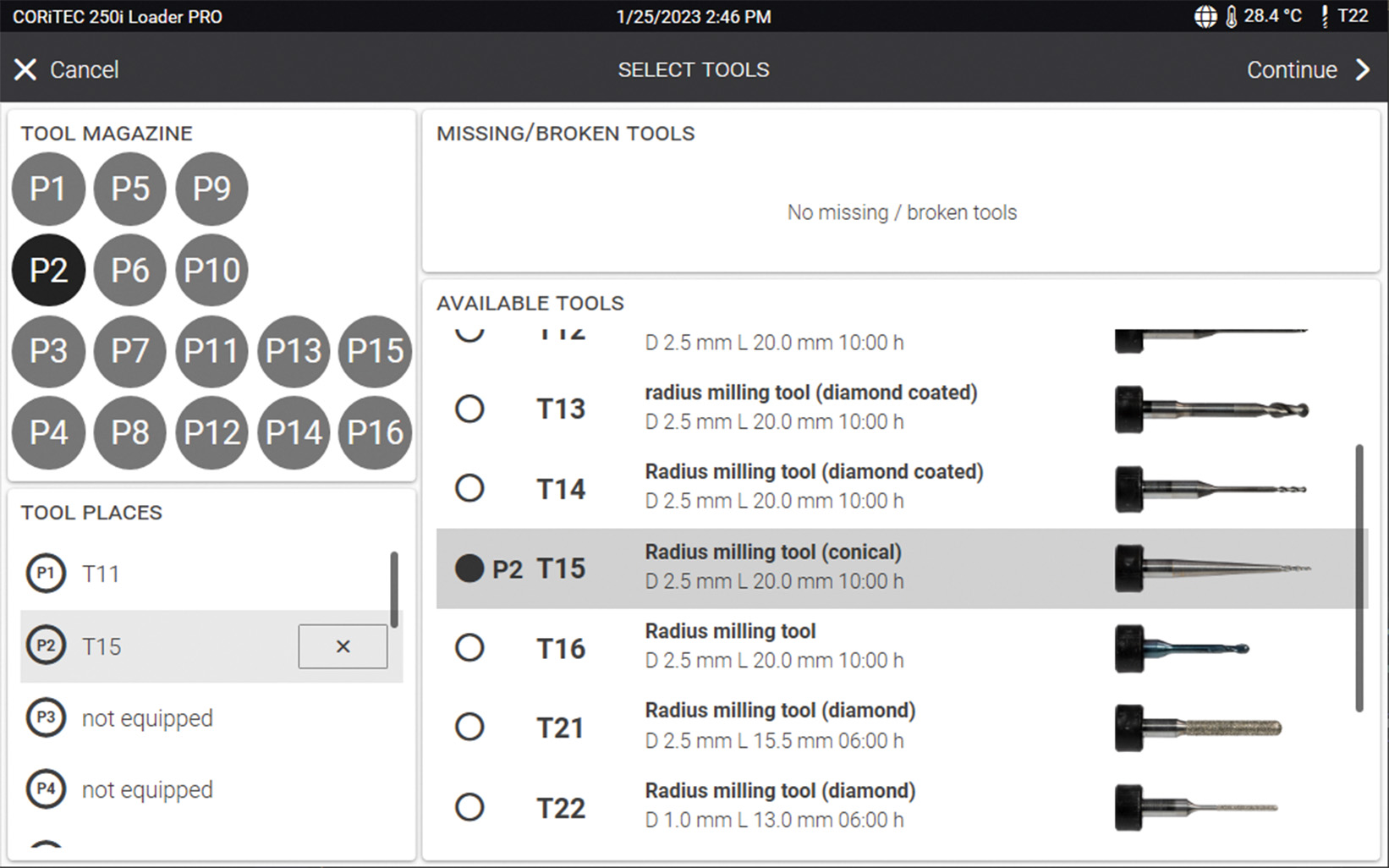

Intelligent Software CORiTEC® SmartControl
- Modern design and simple touch operation
- Intelligent selection of milling jobs
- Easy tool and material loading
- Auto-calibration of the machine
- Wizard guided cleaning and maintenance
- Connection to the Dental Smart Market (DSM)
- Multilingual program interface
- Automatic update function

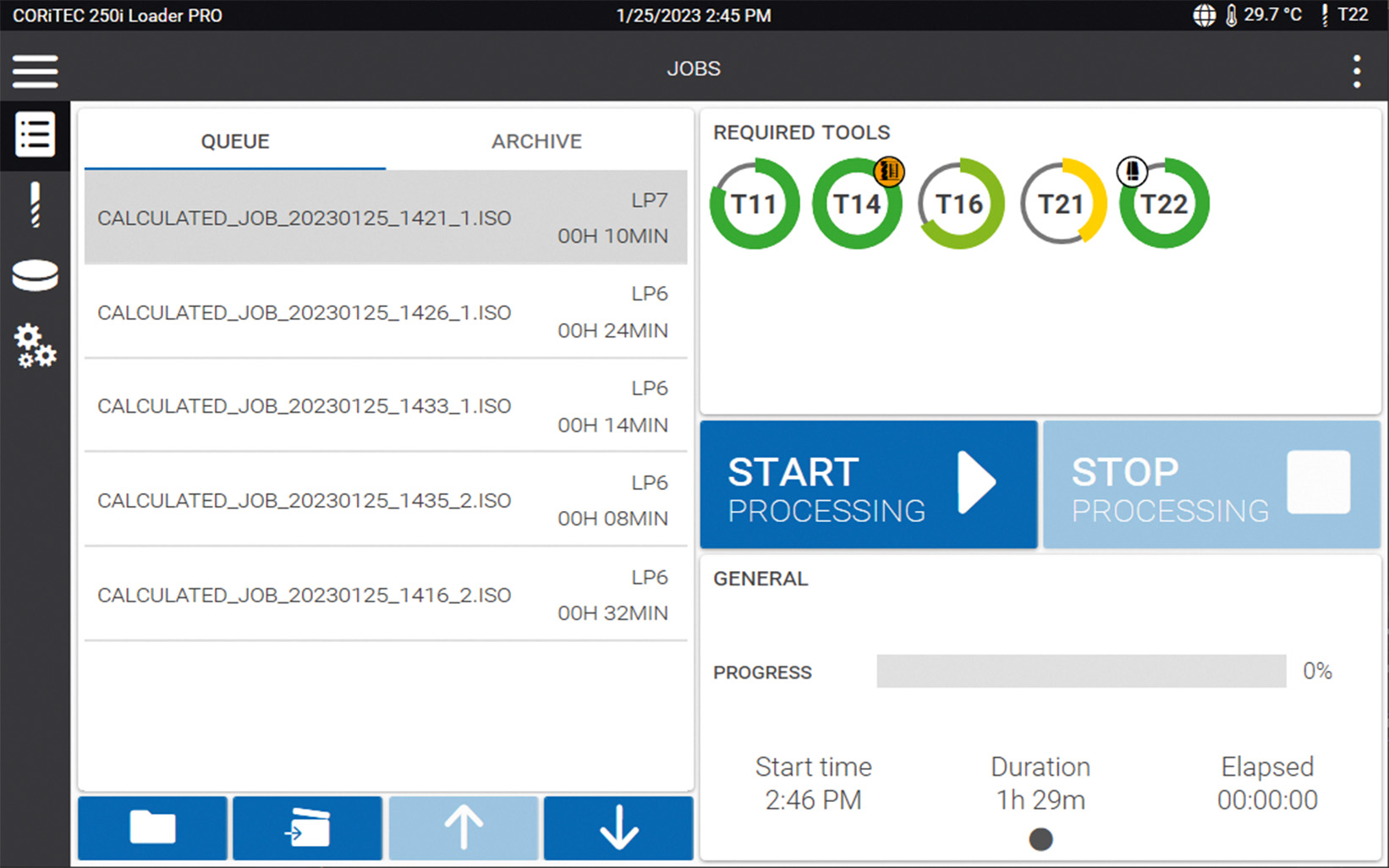

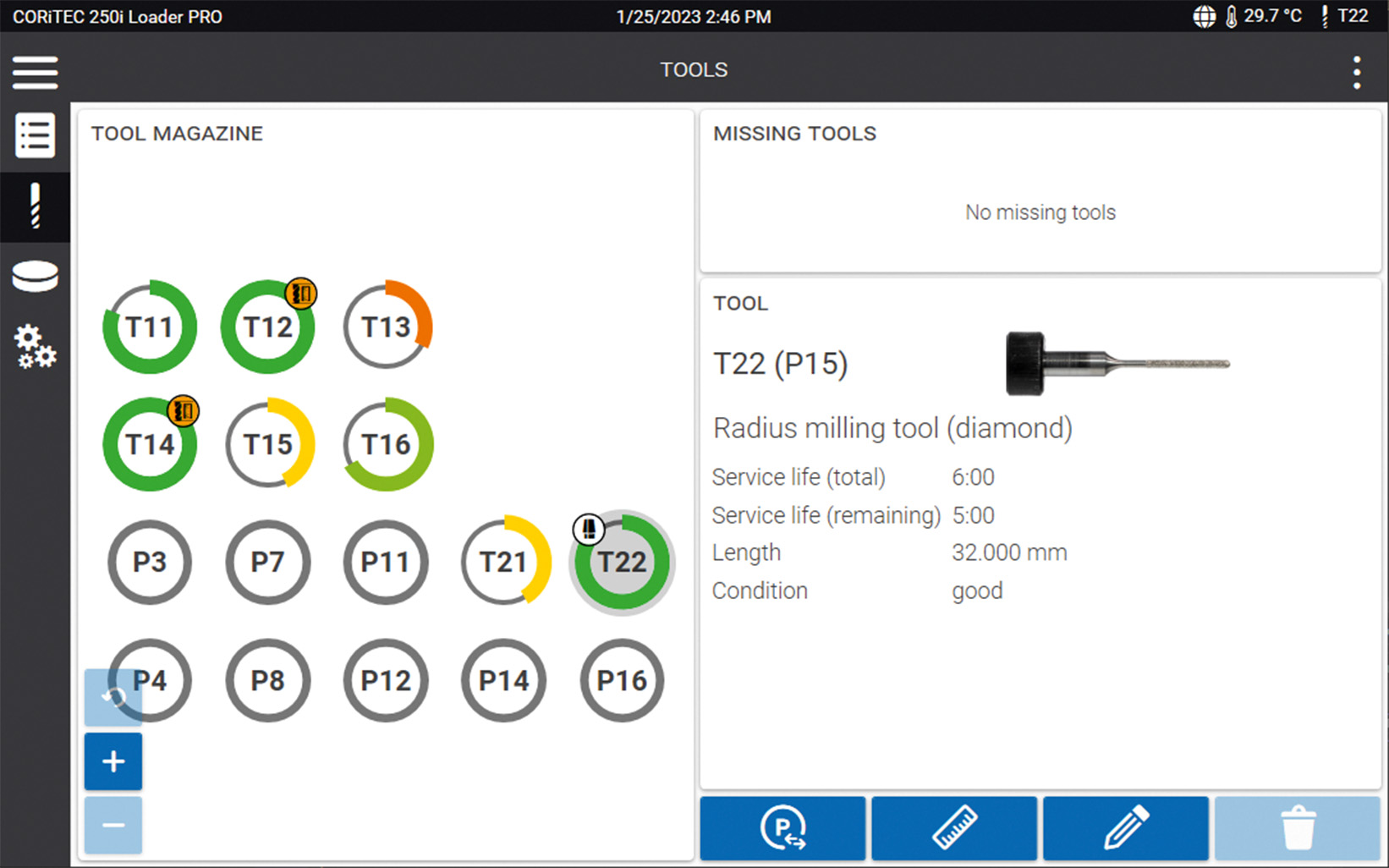

CORiTEC® SmartControl
The newly developed control software “SmartControlTM“ provides absolutely intuitive operation for our milling machines CORiTEC 250i PRO series. From selecting the job to milling or querying the machine status; the self-explanatory and optimized handling makes it possible to start operating the machine in the shortest possible time. Starting a milling process requires only two clicks – Use the benefit of the smart time saving in your workflow!
Smart High End Solution iCAM V5
- 5-axis simultaneous machining and/or 3 + 2 machining to reach undercuts
- No annual license fees
- Unlimited term
- Fully automatic and easy operations with “Wizard Workflow“
- Placing retaining bridges across jobs

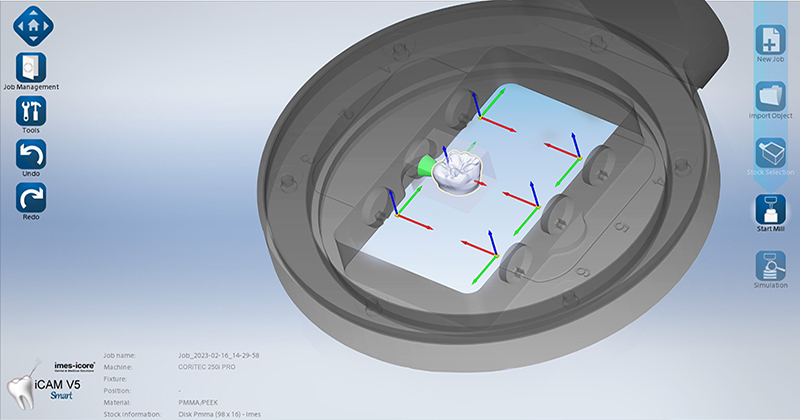

iCAM V5
iCAM V5 is the high-end CAM solution from imes-icore®. The software enables high-precision milling data calculation in simultaneous 5-axis machining for best surface quality and fitting accuracy. Especially with hard materials such as glass ceramics, cobalt chrome or titanium, high-resolution milling data are decisive for best fitting accuracy. In addition, the tool life is increased by smooth running of the machine during machining. Thanks to predefined milling strategies developed by imes-icore® for all materials and applications, the iCAM V5 provides you with a valuable CAM solution that increases the productivity of the CAD/CAM system.
iCAM V5 eco
- enables you to perform 5-axis simultaneous machining for the CORiTEC 150i & 250i including implant module
iCAM V5 smart
- offers 5-axis simultaneous machining for the CORiTEC 150i, 250i, 350i & 650i including implant module
iCAM V5 smart expert
- offers 5-axis simultaneous machining for the CORiTEC 150i & 250i, 350i & 650i including access to the open development interface for the creation of own milling strategies
Smart High End Solution iCAMHD
- High degree of automation
- Efficient work due to support in job management
- Fast training due to intuitive workflow
- Individual management of the scope of processing options
- Always up to date worldwide through optional rental model
- Creation of individual quality standards by the user
- Strategies for tool path generation for the highest surface quality
- Complete collision monitoring

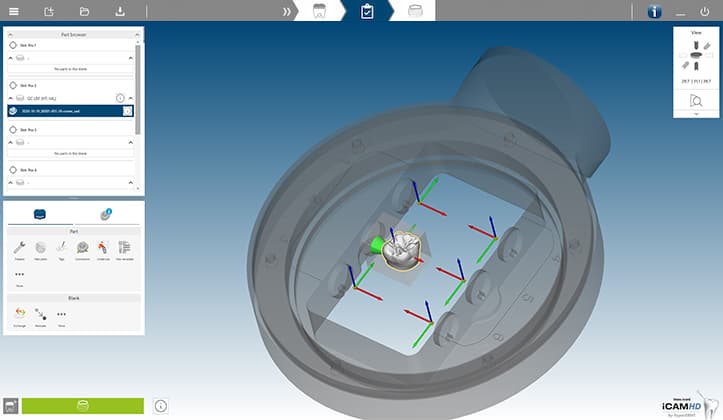

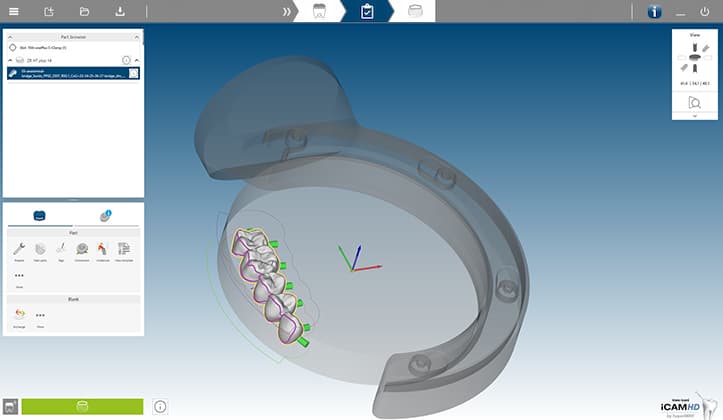

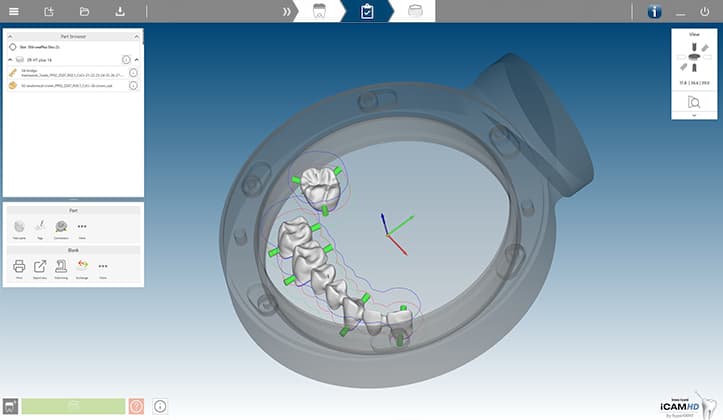

iCAMHD
iCAMHD eco
iCAMHD eco in combination with the CORiTEC 150i PRO and/or CORiTEC 250i PRO series represents the current state-of-the-art in the production of digitally created restorations in the laboratory.
The management of restoration parts, the intelligent workflow, the automatic blank management and the automatic nesting provide efficiency and reliability in the manufacturing process. The object management in iCAMHD automatically detects when new restorations have been designed in CAD and manages the status of the parts. Questions like „What must be manufactured?“ or „What has already been manufactured?“ will be answered by iCAMHD eco. Therefore, errors which occurred in the past are eliminated. All is completed by the possibility of processing of cobalt-chromium alloys. Thus, iCAMHD eco can handle a wide range of materials. Many blank holder options enable the processing of the blanks from all relevant suppliers of
prefabricated blanks to produce abutments. iCAMHD eco automatically finds the right blank and the right holder for the implant interface. The tool paths can be calculated after just three steps. Another highlight of the iCAMHD eco is the creation of individual quality standards by the user. For example, the quality of the surface or how it fits into cavities can be determined by the user. The required settings can be saved afterwards as a profile and used as a standard for the corresponding object type. You can also create appropriate quality profiles for various customer demands. This unique selling point of iCAMHD offers your laboratory the opportunity to expand the basis, based on countless tests with your own standards.
The new Update Center also informs the user about the latest technology. Automatic updates keep the user informed about new features and improvements in the set-up and enable him or her to install them directly.
iCAMHD eco dry
iCAMHD eco dry in combination with the CORiTEC 150i dry offers an economical solution for labs wishing to begin producing digitally created restorations without compromising the current state of the art in the field of CAM. Most indications can be manufactured with only dry processing. The intelligent management of orders and the automatic management of blanks ensure maximum efficiency and safety in the production of digitally created restorations. The intelligent and intuitive workflow saves valuable time and allows the dental technician to concentrate on more important tasks in the lab.
Open to All Scenarios Integrated Workflow
imes-icore offers a whole package including scanner, exocad dentalCAD, iCAM CAM-software, milling and grinding tools and CORiTEC milling machines.
An integrated workflow for both wet and dry milling process with minimum external compressed air offers process-reliable results.
A perfect solution for remarkable results through a variety of applications.
Metal Processing and Automation in Smallest Space Additional Accessories
The CORiTEC 250i PRO series is compatible with all open scanners and impresses with its wide range of additional accessories such as CAM software, sintering furnaces, extraction systems and machine tables.
Accessories
Sintering Furnaces
iSINT eco:
The iSINT eco stands for economy and offers high-quality technology, matching accessories for high standards at a fair price. Compact and with a small footprint, the iSINT eco sintering oven still has sufficient capacity for a sintering bowl Ø100 mm for approx. 25 units. The door stop can be mounted right and left.
| Number of heating elements | 4 |
| Display | 7-Segment |
| Number of program memories | 9 |
| Combustion chamber capacity | 1 x 100 |
| max. heating rate in °C/min | 30 |
| Power in W | 1720 |
| Lift function | No |
| Speedsintering | No |
Accessories
Sintering Furnaces
iSINT PRO:
A larger sintering capacity of up to 80 single crowns is offered by the new iSINT PRO. With a heating system of four high-quality molybdenum disilicide (MoSi2) heating elements, you can choose between conventional long-term sintering or SPEED sintering at a rate of up to 99 °C/min / 210.20 °F/min. The iSINT PRO is operated with a simple and convenient program control. The programs are indicated on a 4-line LCD display. A timer function for overnight sintering or the use of pre-drying programs for shaded zirconium restorations offer further options. In addition, three service programs are available for easy maintenance of the sinter furnace.
| Number of heating elements | 4 |
| Display | 4-line LCD |
| Number of program memories | 30 |
| Combustion chamber capacity | 2 x 120 |
| max. heating rate in °C/min | 99 |
| Power in W | 3200 |
| Lift function | Yes |
| Speedsintering | Yes |
Accessories
suction systems
iVAC eco+:
The iVAC eco+ is the universal solution for all table machines made by imes-icore. Technical Highlights: Very powerful, with a flow rate of up to 260m³/hr, adjustable power, brushless motor for a long service life; large-volume fi lter with 25 liter fi lter bags and a downline HEPA filter, runs quietly, suitable for all imes-icore machine tables.
| Volume flow | 260m³/hr |
| Output | 1200 W |
| Filter system | dust drawer, HEPA filter |
| Filter volume | 25 liters |
| W x D x H (mm/inch) | 440 x 460 x 750/ 17.3 x 18.1 x 29.5 |
| Supply voltage | 115 V - 230 V |
Accessories
suction systems
iVAC silent PRO:
The iVAC silent PRO is able to convince with its compact design and high-quality technology, all at an affordable price. Equipped with a Teflon filter cartridge with automated cleaning and dust drawer with a volume of 8 liters. A volume flow of 240 m³/hr makes it suitable for the CORiTEC one, 150i, 250i and 350i milling machines. The iVAC silent PRO fits the imes-icore machine tables T1 and T2.
| Volume flow | 240 m³/hr |
| Output | 1610 W |
| Filter system | Teflon filter cartridge, automatic cleaning feature |
| Filter volume | 8 liters |
| W x D x H (mm/inch) | 270 x 540 x 535/ 10.6 x 21.2 x 21.1 |
| Supply voltage | 115 V/230 V |
Accessories
Machine table
The undercounters, specially developed for the needs of the various machine types, impress with their sturdy design as well as their attractive appearance. The machine tables have sufficient floor space. Stable rollers ensure optimum stability and easy movement of the devices. Drawers, cable ducts and a cabinet for the integration of appropriate extraction systems are already provided.
Maschine table T2:
W x H x D: 41.7 x 36.6 x 31.1 inch / 1060 x 930 x 790 mm
Everything at a Glance
- Monitor
integrated 10'1" touchscreen - Control Software
CORiTEC SmartControlTM
integrated CNC software - Blank changer
CORiTEC 250i Loader PRO: automatic up to 7 blank holder - Tool changer
CORiTEC 250i PRO+: 10-fold (magazine interchangeable)
CORiTEC 250i Loader PRO: 16-fold (magazine interchangeable) - Cooling
3.7 liter / 18.17 gpm tank integrated
- Air pressure
External compressed air required
7bar @ 60l/min - Tool length control
≤ 0.002 mm precision - Spindle type
High frequency spindle - Max. rotational speed / spindle power
CORiTEC 250i PRO+: 60.000 rpm, 1.0 kW
CORiTEC 250i Loader PRO: 100.000 rpm, 750 Watt - Integrated PC
Windows based - Milling and grinding tools
CORiTEC 250i PRO+: 6mm toll shaft
CORiTEC 250i Loader PRO: 3 mm tool shaft
Mechanics / Electronics
- Number of axes and movement type
5 axes, simultaneous machining - Rotation angle
A-axis 360°
B-axis up to ± 30°
Connecting Requirements
- Weight
CORiTEC 250i PRO+: 95 kg / 209.4 lbs
CORiTEC 250i Loader PRO: 110 kg / 242.5 Ibs - Width x depth x height
CORiTEC 250i PRO+:
591 x 613 x 724 mm / 23.3 x 24.1 x 28.5 inch
CORiTEC 250i Loader PRO:
790 x 613 x 724 mm / 31.1 x 24.1 x 28.5 inch - Mains voltage / frequency / power
100 V - 240 V / 50/60 Hz / 750 W
