NeXt-Level Performance CORiTEC® 350i X PRO series

5
Axes

2-fold integrated
ionizer

15-fold
tool changer

3.0 kW
Spindle power

Powerful spindle
3.0 kW power, 60.000 rpm

New Design
Smarter handling

high-dynamic servo motors
For up to 30% faster milling

zero point clamping system
4 times higher clamping force

NeXt-Level Performance CORiTEC® 350i Loader X PRO HIGHLIGHTS

    • Integrated wet and dry processing
    • New ionizer-module integrated
    • Cooling pump with threefold power
    • Absolute measuring system in all axes
    • Up to 30 % quicker processing
    • Suitable for 24-hour production operation
    • 15-fold blankchanger
    • Exchangable tool changer
    3.0

    kW
    spindle power



    6

    mm
    shaft tools

    15

    Fold blank changer
    (Loader variant)

    30

    % faster
    milling

    For the Highest Demands Maximising performance

    The CORiTEC 350i X PRO series is an innovative machine concept that meets all the requirements of the modern CAD/CAM process. The extremely stable construction enables the processing of all relevant materials in wet and dry machining. Optional with fully automatic 15-position blank changer, the system enables versatile machining in 24-hour operation. The zero-point clamping system offers maximum flexibility for a wide range of applicatitions.

    Telescopic technology

    Abutment

    Full Denture

    Bar constructions

    NeXt Level Performance WIDE RANGE OF APPLICATIONS

    • Zirconia
    • Pre-milled Abutment (Ti)
    • Pre-milled Abutment (CoCr)
    • Cobalt-chrome
    • Glass ceramic
    • Lithium disilicate
    • Hybrid ceramic
    • Sintered metal
    • Composite
    • PEEK
    • PMMA
    • Wax

    Blank holder

    Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 350i X PRO series impresses in all areas.

    • Closed blank holder for high stability
    • Processing of all common materials in blank shape



    C-Clamp holder

    • Half-open blank holder
    • Enables 5-axis machining up to 90 degrees axis adjustment
    • Complex end face machining possible

    1-fold universal adapter

    • Base unit for processing of glass ceramics blocks and different abutment systems
    • Turn-milling processing possible



    Glass ceramics fixture for universal adapter

    • Suitable for 1-fold universal adapter of CORiTEC 350i X PRO series
    • Processing of all common materials (e.g., glass ceramics & lithium disilicate)



    Pre-milled universal holder

    • Suitable for 1-fold universal adapter of CORiTEC 350i X PRO series
    • High accuracy of fit due to predefined implant interfaces
    • Different kinds of abutment systems available (e.g., nt-trading, DESS, Medentika or Zfx)



    3-fold Glass ceramics fixture

    • Processing of up to 3 blocks at once possible
    • Processing of all common materials (e.g., glass ceramics & lithium disilicate)

    6-fold glass ceramics adapter

    • Processing of up to 6 blocks at once possible
    • Processing of all common materials (e.g., glass ceramics & lithium disilicate)



    6-fold pre-milled abutment holder

    • Processing of up to 6 pre-milled abutments at once possible
    • High accuracy of fit due to predefined implant interfaces
    • Different kinds of abutment systems available (e.g., nt-trading, DESS, Medentika or Zfx)

    Indications

    Intelligent Software CORiTEC® SmartControl

    • Modern design and simple touch operation
    • Intelligent selection of milling jobs
    • Easy tool and material loading
    • Auto-calibration of the machine
    • Wizard guided cleaning and maintenance
    • Connection to the Dental Smart Market (DSM)
    • Multilingual program interface
    • Automatic update function

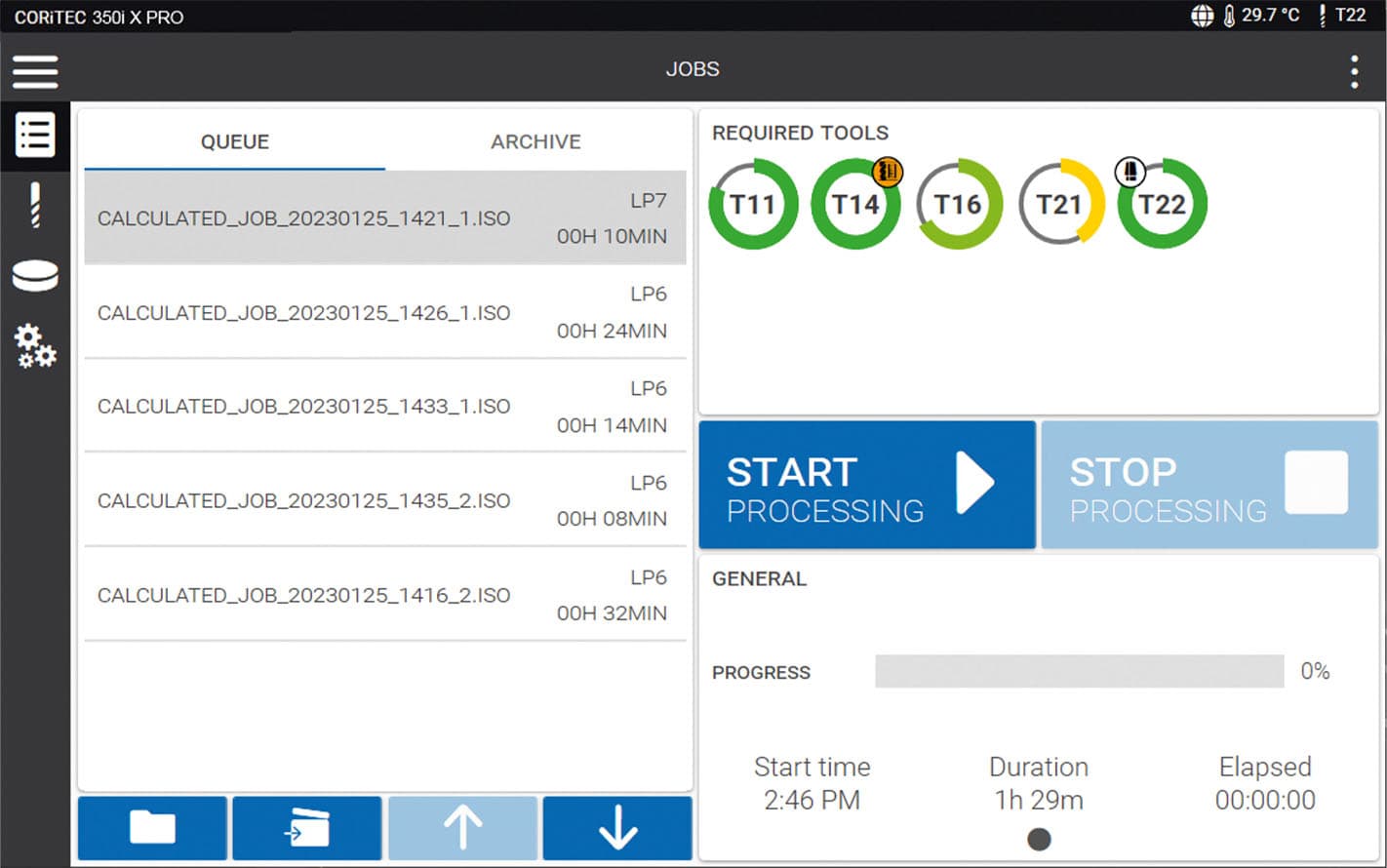

    CORiTEC 250i Loader PRO - SmartControl - Overview
    Real-time preview of milling data
    CORiTEC 250i Loader PRO - SmartControl - Tools
    Simple and clear tool selection
    CORiTEC 250i Loader PRO - SmartControl - Tool manager
    Ideal tool management

    CORiTEC® SmartControl

    The newly developed control software “SmartControl“ provides absolutely intuitive operation for our milling machines
    CORiTEC 350i X PRO series. From selecting the job to milling or querying the machine status; the self-explanatory and optimized handling makes it possible to start operating the machine in the shortest possible time. Starting a milling process requires only two clicks – Use the benefit of the smart time saving in your workflow!

    Smart High End Solution iCAM V5

    • 5-axis simultaneous machining and/or 3 + 2 machining to reach undercuts
    • No annual license fees
    • Unlimited term
    • Fully automatic and easy operations with “Wizard Workflow“
    • „ReFit“-Abutment exchange geometries
    • Placing retaining bridges across jobs
    iCAM v5 - CORiTEC 350i X PRO
    iCAM v5 - CORiTEC 350i X PRO
    iCAM v5 - CORiTEC 350i X PRO

    iCAM V5

    iCAM V5 is the high-end CAM solution from imes-icore®. The software enables high-precision milling data calculation in simultaneous 5-axis machining for best surface quality and fitting accuracy. Especially with hard materials such as glass ceramics, cobalt chrome or titanium, high-resolution milling data are decisive for best fitting accuracy. In addition, the tool life is increased by smooth running of the machine during machining. Thanks to predefined milling strategies developed by imes-icore® for all materials and applications, the iCAM V5 provides you with a valuable CAM solution that increases the productivity of the CAD/CAM system.

    iCAM V5 smart

    • offers 5-axis simultaneous machining for the CORiTEC 150i, 250i, 350i, 350i X PRO & 650i series including implant module

    iCAM V5 smart expert

    • offers 5-axis simultaneous machining for the CORiTEC 150i & 250i, 350i X PRO & 650i series including access to the open development interface for the creation of own milling strategies

    Open to All Scenarios INTEGRATED WORKFLOW

    imes-icore offers a whole package including scanner, exocad CAD, iCAM CAM software, milling and grinding tools and CORiTEC milling machines.

    The integrated workflow for both wet and dry milling processes in combination with the highest level of stability offers process-reliable results for the highest demands.

    A perfect solution for remarkable results through a wide range of applications.

    NeXt Level Peformance Additional accessories

    The CORiTEC 350i X PRO series  is compatible with all open scanners and impresses with its wide range of additional accessoires such as CAM software, sintering furnaces, extraction systems and machine tables.

    Accessories

    suction systems

    iVAC eco+:
    The iVAC eco+ is the universal solution for all table machines made by imes-icore. Technical Highlights: Very powerful, with a flow rate of up to 260m³/hr, adjustable power, brushless motor for a long service life; large-volume fi lter with 25 liter filter bags and a downline HEPA filter, runs quietly, suitable for imes-icore machine tables T1 and T2.

    Volume flow260m³/hr
    Output1200 W
    Filter system      dust drawer, HEPA filter
    Filter volume25 liters
    W x D x H
    (mm/inch)
    440 x 460 x 750/
    17.3 x 18.1 x 29.5
    Supply voltage115 V - 230 V

    Accessories

    suction systems

    iVAC PRO+:
    Industrial vacuum system with brushless motor, 280m³/hr volume flow, adjustable power, filter system with Teflon filter cartridge and large dust drawer, automatic self-cleaning feature for compressed air, suitable for all imes-icore dental milling machines.

    Volume flow280 m³/hr
    Output1200 W
    Filter system      Teflon filter cartridge,
    automatic cleaning feature
    Filter volume15 liters
    W x D x H
    (mm/inch)
    350 x 350 x 1000/
    13.8 x 13.8 x 39.4
    Supply voltage115 V - 230 V

    Accessories

    Sintering Furnaces

    iSINT eco:
    The iSINT eco stands for economy and offers high-quality technology, matching accessories for high standards at a fair price. Compact and with a small footprint, the iSINT eco sintering oven still has sufficient capacity for a sintering bowl Ø100 mm for approx. 25 units. The door stop can be mounted right and left.

    Number of heating elements           4
    Display7-Segment
    Number of program memories         9
    Combustion chamber capacity1 x 100
    max. heating rate in °C/min30
    Power in W1720
    Lift functionNo
    SpeedsinteringNo

    Accessories

    Sintering Furnaces

    iSINT PRO:
    A larger sintering capacity of up to 80 single crowns is offered by the new iSINT PRO. With a heating system of four high-quality molybdenum disilicide (MoSi2) heating elements, you can choose between conventional long-term sintering or SPEED sintering at a rate of up to 99 °C/min / 210.20 °F/min. The iSINT PRO is operated with a simple and convenient program control. The programs are indicated on a 4-line LCD display. A timer function for overnight sintering or the use of pre-drying programs for shaded zirconium restorations offer further options. In addition, three service programs are available for easy maintenance of the sinter furnace.

    Number of heating elements           4
    Display4-line LCD
    Number of program memories         30
    Combustion chamber capacity2 x 120
    max. heating rate in °C/min99
    Power in W3200
    Lift functionYes
    SpeedsinteringYes

    Accessories

    Machine tables

    The undercounters, specially developed for the needs of the various machine types, impress with their sturdy design as well as their attractive appearance. The machine tables have sufficient floor space. Stable rollers ensure optimum stability and easy movement of the devices. Drawers, cable ducts and a cabinet for the integration of appropriate extraction systems are already provided.

    Machine table 350i X PRO:
    W x H x D: 29.9 x 31.1 x 35.4 inch / 758 x 790 x 900 mm

    Accessories

    Machine tables

    The undercounters, specially developed for the needs of the various machine types, impress with their sturdy design as well as their attractive appearance. The machine tables have sufficient floor space. Stable rollers ensure optimum stability and easy movement of the devices. Drawers, cable ducts and a cabinet for the integration of appropriate extraction systems are already provided.

    Machine table 350i Loader X PRO:
    W x H x D: 41.7 x 31.1 x 35.4 inch / 1058 x 790 x 900 mm

    Everything at a glance

    • Monitor
      integrated 15,6" Full-HD touchscreen
    • Control Software
      CORiTEC SmartControlTM
      integrated CNC software
    • Blank changer
      CORiTEC 350i Loader X PRO:  automatic 15 blank changer
    • Tool changer
      20-fold tool changer
    • Wet processing
      3,7 l / 0,98 gal (US) tank integrated
    • Air pressure
      External air pressure required
      6.0 - 9.0 bar @ 80l/min
    • Tool length control
      ≤ 0.002 mm precision
    • Spindle type
      High frequency spindle
    • Max. rotational speed / spindle power
      60.000 U/min, 3.0 kW
    • Tools
      Milling and grinding tools with 6 mm diameter

    Mechanics / Electronics

    • Number of axes and movement type
      5 axes, simultaneous machining
    • Rotation angle
      A-axis 360°
      B-axis 115°

    Connecting requirements

    • Weight
      CORiTEC 350i X PRO:
      ca. 220 kg / 485 lbs
      CORiTEC 350i Loader X PRO:
      ca. 265 kg / 584 lbs
    • Width x depth x height
      CORiTEC 350i X PRO:
      758 x 790 x 857 mm / 29.9 x 31.1 x 33.8 inch
      CORiTEC 350i Loader X PRO:
      1058 x 790 x 857 mm / 41.6 x 31.1 x 33.8 inch
    • Mains voltage / frequency / power
      100 V - 240 V / 50/60 Hz
