Hybrid processing
Re-milling of LPBF work
WATER-COOLED High frequency spindle
Up to 50,000 rpm and 5.7 kW power
INDUSTRIAL TOOL HOLDER
High-precision HSK 25
HIGH-SPEED TURNING AND MILLING
e.g., abutments in approx. 4 minutes
As a specialized solution for post-processing metal 3D printed parts, the 650i PRO combines additive and subtractive manufacturing – a technological advantage that sets your lab apart from the competition.
✔ Post-processing of metal prints
(e.g., LPBF or laser-sintered metal frameworks such as model castings or telescopes)
✔ Open to all common metal printing systems
✔ Coordinated process chain
(printing and milling)
✔ Precise 3D measurement
✔ Optimized CAM strategies
✔ Highest quality standards
Fold tool
changer
Fold blank
changer
Liters integrated
coolant tank
kW
high frequency spindle

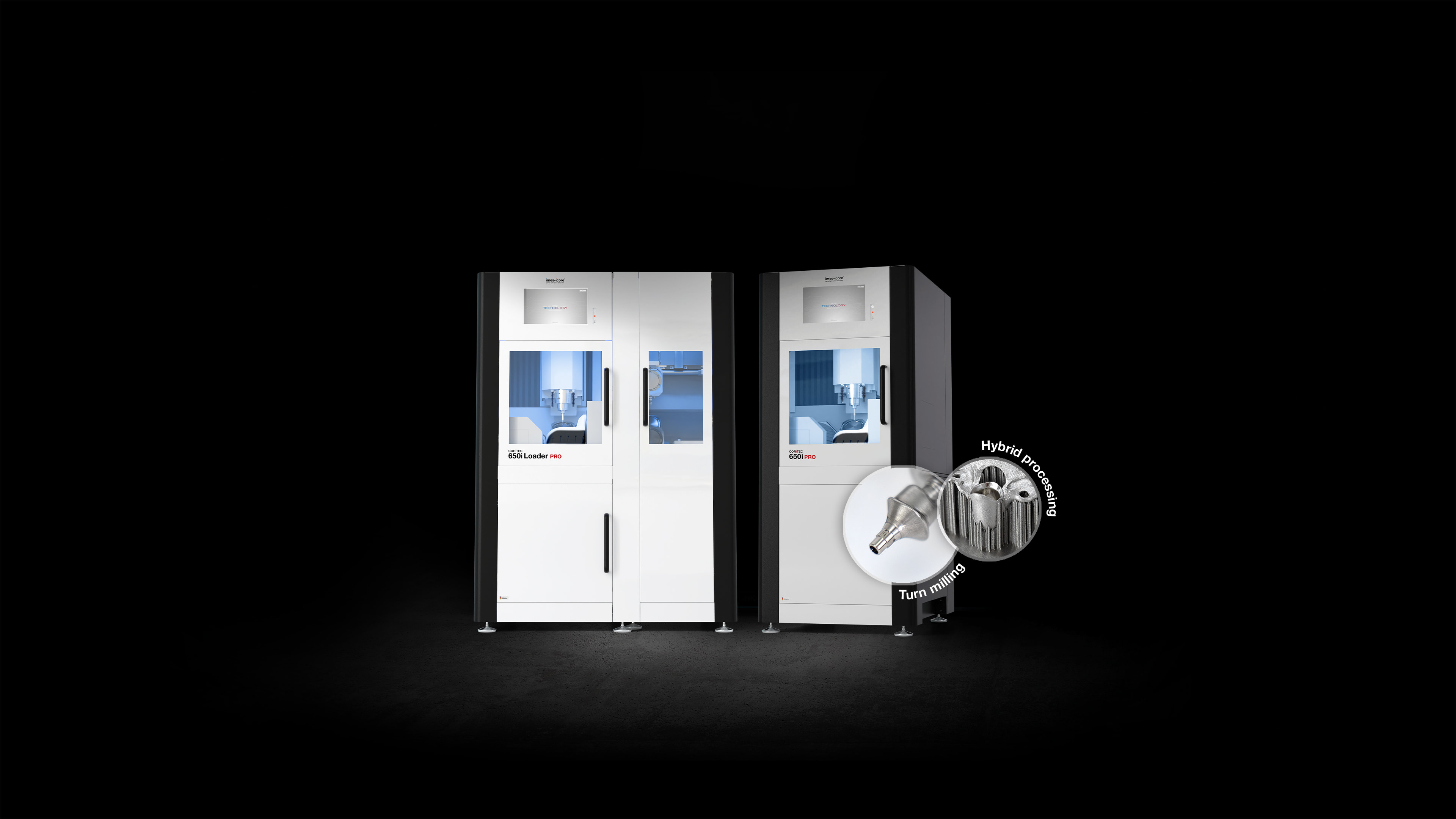

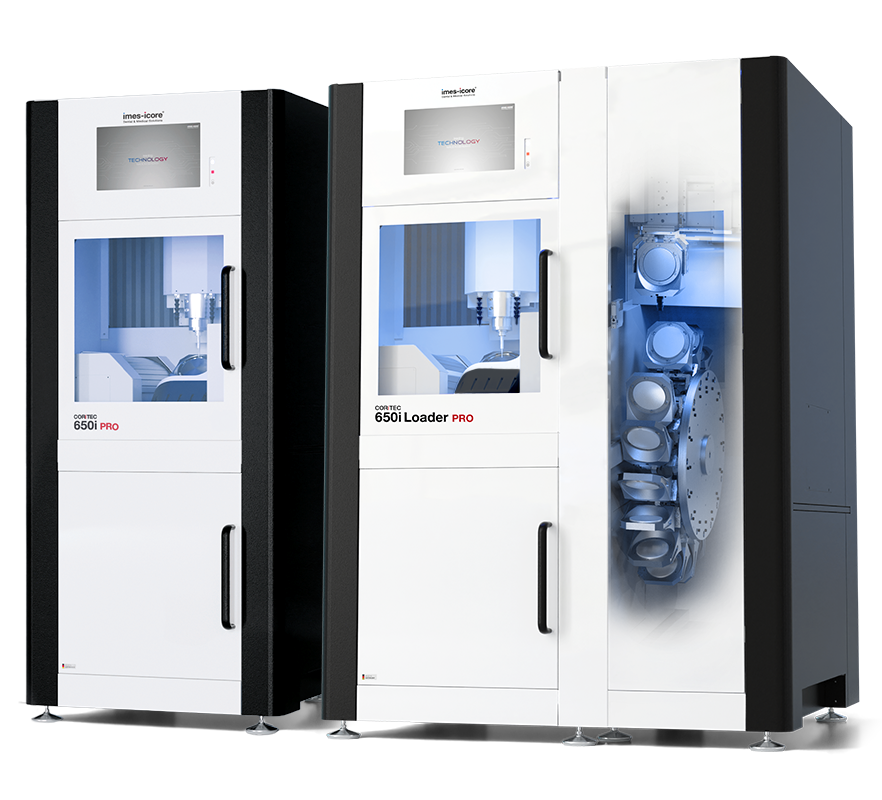

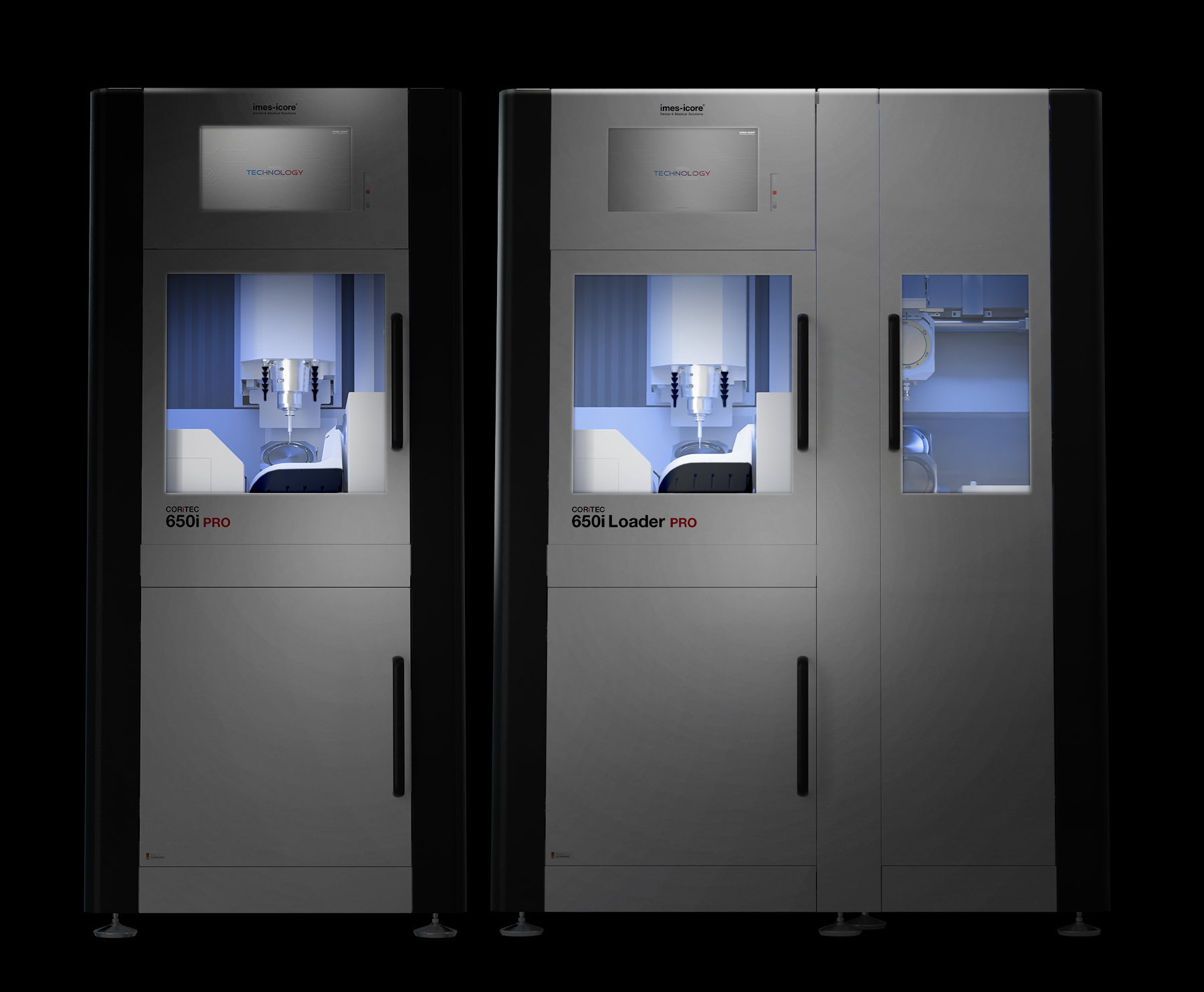

We developed the CORiTEC 650i PRO and CORiTEC 650i Loader PRO machine systems for the area of PREMIUM machines and PREMIUM requirements. The CORiTEC 650i Loader PRO includes a fully integrated automatic 16-fold blank changer. This allows you to operate the machine system around the clock with consistently high precision.
Bar and supra construction
Hybrid milling
Telescopic technology
Turn milling
Universal holder

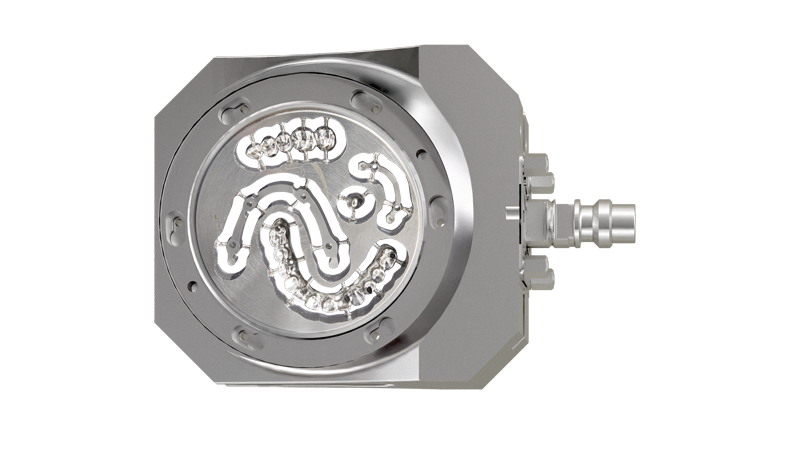

Blank holder

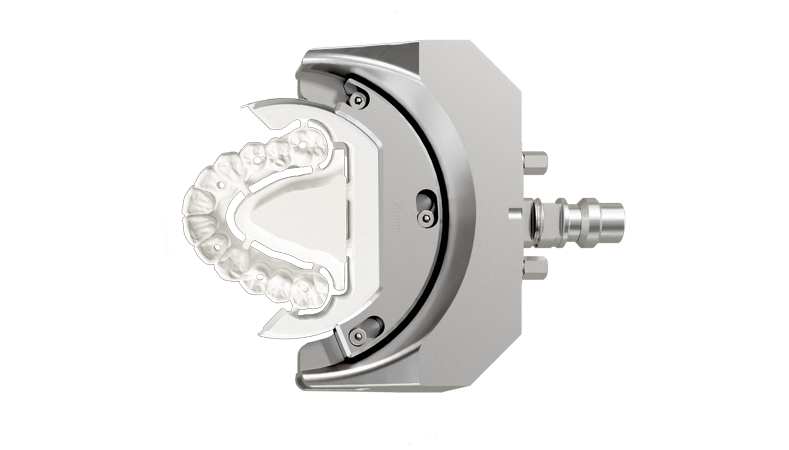

C-Clamp holder
6-fold glass ceramics adapter
6-fold pre-milled abutment holder

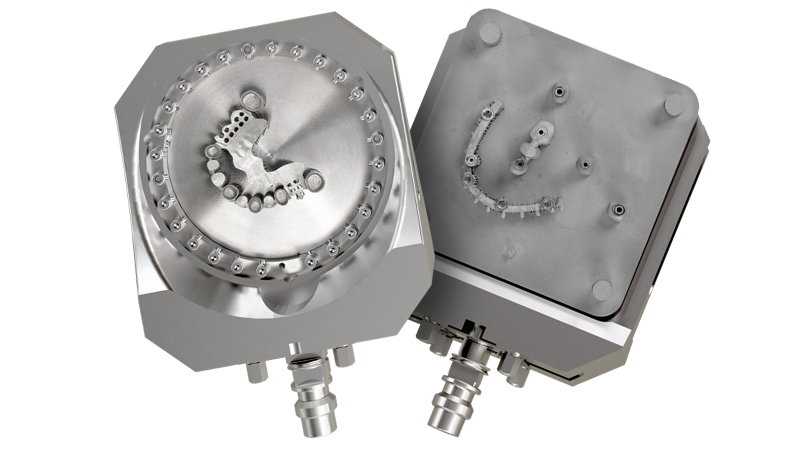

Blank holder for hybrid machining
Indications

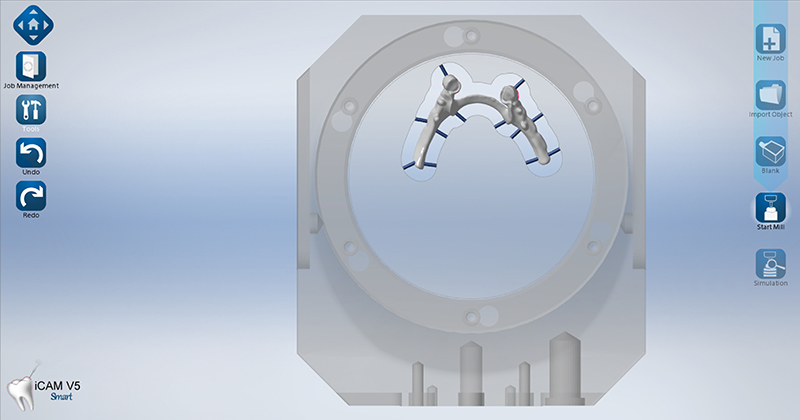

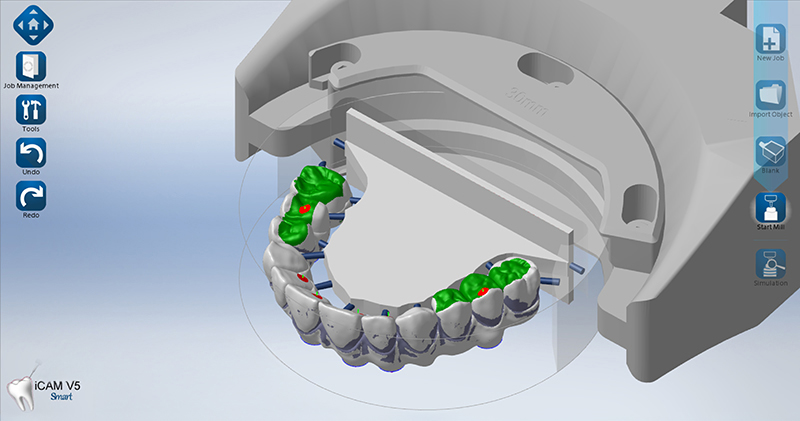

iCAM V5
iCAM V5 is the high-end CAM solution from imes-icore®. The software enables high-precision milling data calculation in simultaneous 5-axis machining for best surface quality and fitting accuracy. Especially with hard materials such as glass ceramics, cobalt chrome or titanium, high-resolution milling data are decisive for best fitting accuracy. In addition, the tool life is increased by smooth running of the machine during machining. Thanks to predefined milling strategies developed by imes-icore® for all materials and applications, the iCAM V5 provides you with a valuable CAM solution that increases the productivity of the CAD/CAM system.
iCAM HD
The CORiTEC iCAM HD software combines a high level of automation with efficient order management. Thanks to the intuitive workflow, familiarization is quick and easy, while processing options can be managed individually. Automatic updates keep the software up to date at all times. Validated strategies ensure precise results and excellent surface quality, while integrated collision monitoring guarantees maximum safety in process control.
iCAM HD advantages at a glance:
imes-icore offers a whole package including scanner, exocad CAD, iCAM CAM software, milling and grinding tools and CORiTEC milling machines.
The integrated workflow for both wet and dry milling processes in combination with the highest level of stability offers process-reliable results for the highest demands.
A perfect solution for remarkable results through a wide range of applications.

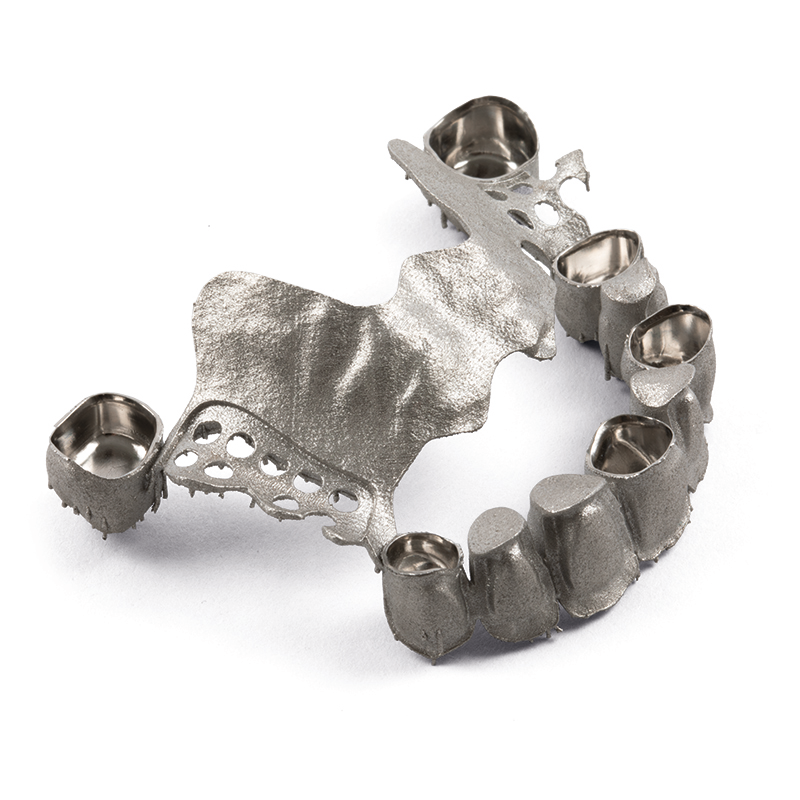

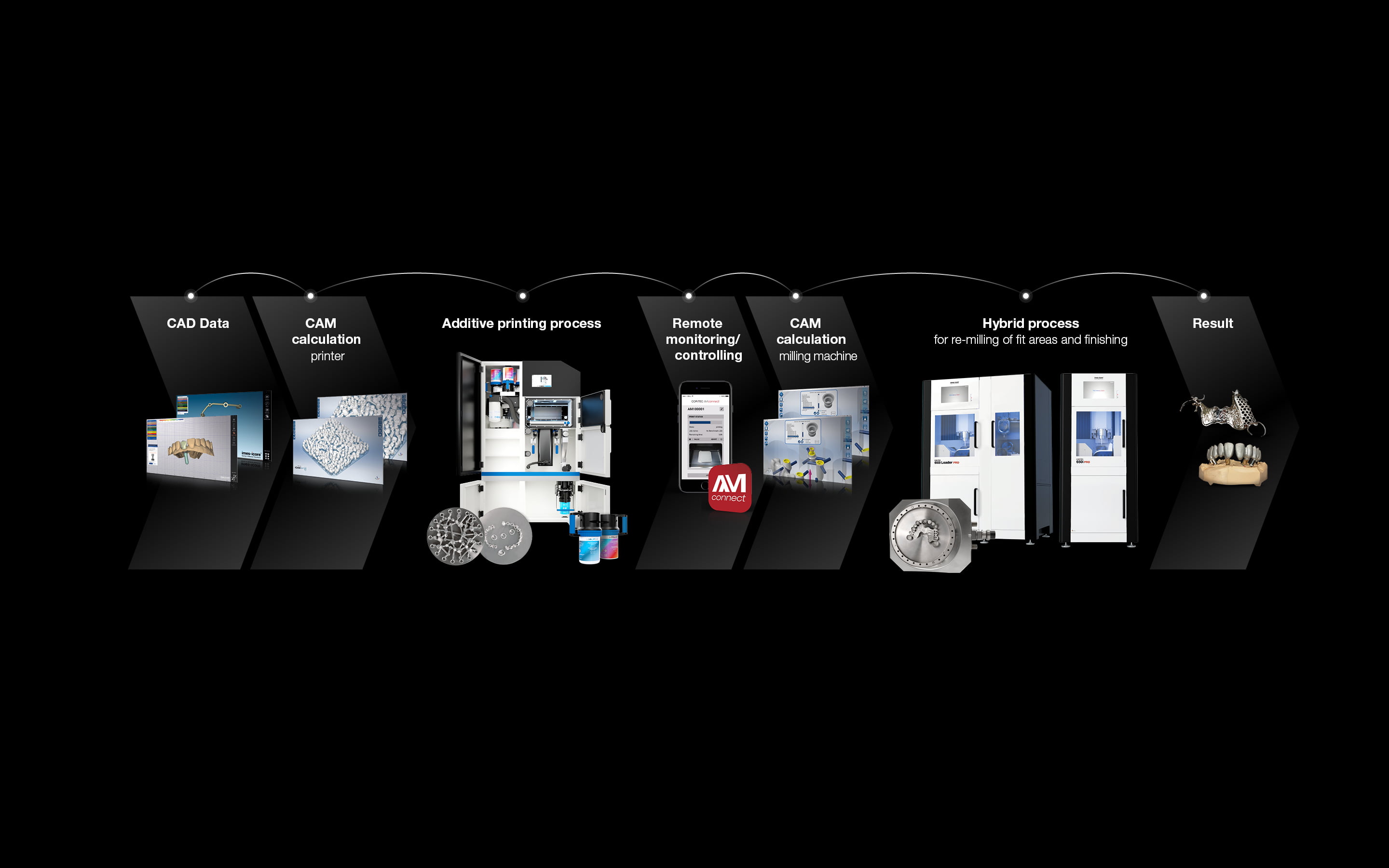

The CORiTEC 650i PRO series redefines the re-milling of LPBF units, setting new standards in hybrid technology for high-quality dental prostheses. The workflow combines cost-effective 3D printing of complex structures with precise post-processing by the CORiTEC 650i PRO series – for maximum accuracy of fit and smooth surfaces. Thanks to integrated 3D measurement technology, customized components, and intelligent CAM software, data transfer takes place automatically – all interfaces and positions within the process chain are perfectly coordinated.

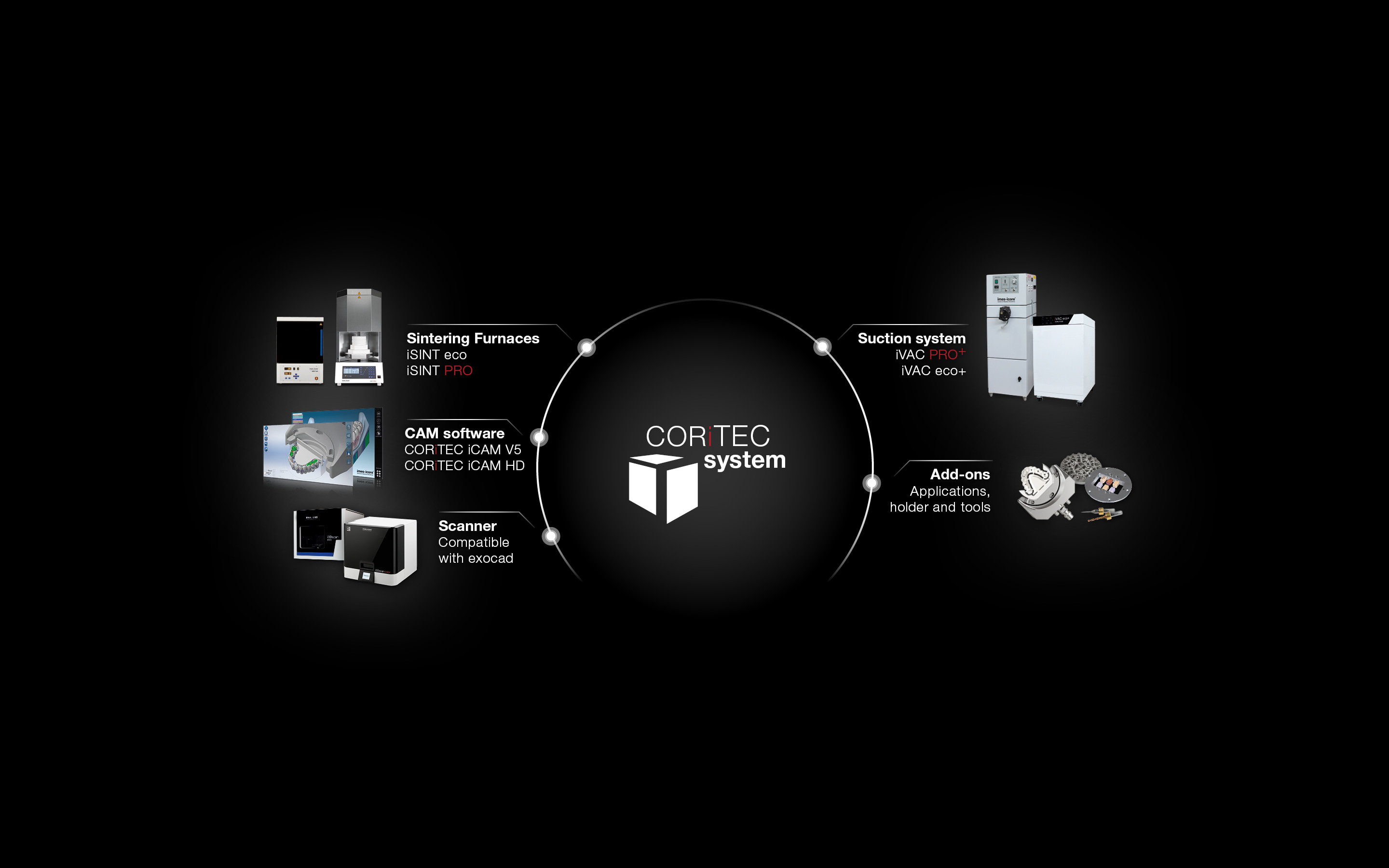

The CORiTEC 650i PRO series is compatible with scanners, exocad and impresses with its wide range of additional accessoires such as CAM software, sintering furnaces and extraction systems.
Accessories
LPBF Hybrid processing:
With the high-precision CORiTEC 650i PRO machine, technology partners have developed a special process to re-mill work that was previously produced in the LPBF process with high precision. This allows e.g. building of highly complex web constructions made of various materials such as titanium or CoCr in advance in the LPBF process, and subsequently rework interfaces with the CORiTEC 650i PRO for the perfect fit and surface finish. This procedure is implemented in a special WorkFlow, in which a 3D probe is integrated in the CORiTEC 650i PRO.
The touch probe determines the exact position and position of the LPBF building board. Using 3D measurement functions of the CAM software, the fit and interface areas of the restorations on the LPBF plate can then be precisely milled with the CORiTEC 650i PRO. This method can be used in principle with any LPBF systems and with different CAM systems in combination with the CORiTEC 650i PRO.
With the 3D probe, a controlled measurement is made via reference points in order to determine deviations, displacements and rotations. In the background, the imes-icore 3D measurement software calculates the values and writes them back to the CAM software to implement the corrections.
Accessories
iVAC eco+:
The iVAC eco+ is the universal solution for all table machines made by imes-icore. Technical Highlights: Very powerful, with a flow rate of up to 260m³/hr, adjustable power, brushless motor for a long service life; large-volume fi lter with 25 liter filter bags and a downline HEPA filter, runs quietly, suitable for imes-icore machine tables T1 and T2.
| Volume flow | 260m³/hr |
| Output | 1200 W |
| Filter system | dust drawer, HEPA filter |
| Filter volume | 25 liters |
| W x D x H (mm/inch) | 440 x 460 x 750/ 17.3 x 18.1 x 29.5 |
| Supply voltage | 115 V - 230 V |
Accessories
iVAC PRO+:
The industrial extraction system with brushless motor, volume flow of 280 m³/hr, adjustable capacity, filter system with Teflon filter cartridge andlarge dust drawer, automatic compressed air self-cleaning is suitable for all dental milling machines from imes-icore.
| volume flow | 280 m³/hr |
| output | 1200 W |
| filter system | Teflon filter cartridge,automatic cleaning feature |
| filter volume | 15 liters /56.78 gpm (dust drawer) |
| width x depth x height | 13.8 x 13.8 x 39.4 inch / 350 x 350 x 1000 mm) |
| supply voltage | 115 V - 230 V |
| special features | compressed air self-cleaning system |
