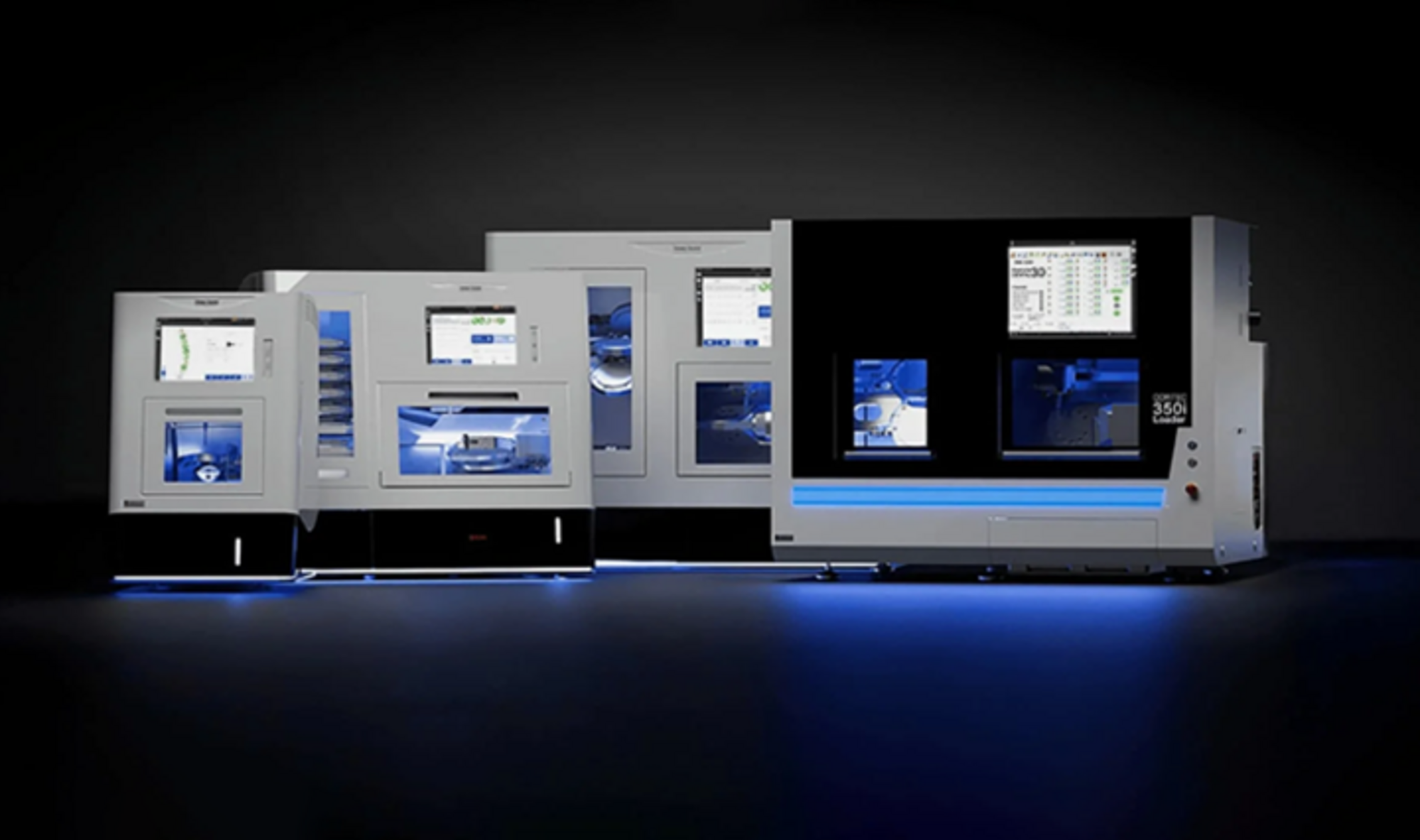

1. What is a dental CNC machine?
Dental CNC (Computerized Numerical Control) machines are specialized milling units that automatically convert digital design data into high-precision restorations. As part of an end-to-end digital manufacturing process, they combine CAD design and CAM calculation with suitable tools and milling strategies for the actual machining process.
In the context of dental technology, these machines enable the precise processing of a wide range of materials such as zirconium oxide, PMMA, titanium, composites, etc. into dental fixed and removable restorations such as crowns, bridges, inlays, prostheses or implant structures.
In contrast to conventional manually operated milling machines, CNC systems offer automated production with high repeat accuracy and efficiency. CAD/CAM software is used to convert digital models from intraoral or laboratory scans into milling data, which the CNC machine produces using calculated milling strategies.
2. Technical structure: Components in detail
2.1 The machine bed and the axis systems
The foundation of every dental CNC machine is the machine bed. It ensures stability and vibration damping - two essential prerequisites for precise results. The axis systems are located on the machine bed, usually in the form of three to five axes (X, Y, Z and optionally A and B), which enable the movements of the workpiece holder and/or the tool.
2.2 Spindle, tool changer and milling tools
The heart of the CNC machine is the high-frequency spindle. It drives the milling tool used at speeds of up to 100,000 rpm. Modern machines have automatic tool changers with various milling cutters, grinding and drilling tools for roughing and finishing.
2.3 Control and CAM connection
The machine control translates CAM data (e.g. from Hyperdent or V5 smart) into machine movements. The intuitive control system precisely coordinates all axes and ensures efficient production.
3. Functionality in the digital workflow
3.1 From the scan file to the milling strategy
A digital workflow begins with an intraoral or laboratory scan. The file is further processed in the CAD software and then provided with a suitable milling strategy in the CAM system. The CNC machine implements the specifications precisely.
3.2 Wet vs. dry milling
Dry processing is suitable for materials such as PMMA or pre-sintered zirconia, while wet processing is suitable for titanium or glass ceramics. Combination units enable both depending on requirements and offer maximum flexibility.
4. Types of dental milling machines
4.1 3-axis vs. 5-axis technology
3- or 4-axis machines are limited for simple geometries, 5-axis machines for complex work in one clamping process. The latter offer greater precision and efficiency.
4.2 Wet vs. dry milling
Open systems are compatible with third-party software and materials. Closed systems offer integrated, often more intuitive solutions. The decision depends on the laboratory requirements.
5. Areas of application and materials
5.1 Zirconium oxide, PMMA, glass ceramics and more
Dental CNC machines process materials such as zirconium, PMMA, glass ceramics, composites, non-precious metals and titanium. Zirconia, composites and glass ceramics are suitable for permanent restorations, PMMA for temporary restorations and dentures, titanium and non-precious metals for implant parts, superstructures and partial denture bases.
5.2 Typical applications in denture production
Typical products are fixed dentures such as crowns, bridges, inlays, abutments, combined fixed-removable dentures such as superstructures on abutments or bars, e.g. complete or partial dentures and aids such as models or drilling templates.
CNC technology reduces manual work and increases quality and throughput.
6. Conclusion: Efficiency through automated precision
Dental CNC machines have become an integral part of digital dental technology. They enable a reproducible workflow and provide an optimal basis for modern dental prosthesis production. Choosing the right machine is crucial for long-term competitiveness and cost-effectiveness.
Discover our solutions for digital dental technology now: imes-icore.com/dental
Do you have any questions? Contact us using our form: imes-icore.com/contact
Stay informed - subscribe to our newsletter: imes-icore.com/newsletter
FAQ: Frequently asked questions about dental CNC technology
What is the difference between 3-axis and 5-axis CNC machines?
5-axis systems offer more freedom of movement and enable complex milling in a single pass.
Which materials can be processed?
Zirconia, PMMA, wax, glass ceramics, composites, titanium, non-precious metals and many more.
Which software is supported?
Common CAD systems such as Exocad and Dental Designer, CAM systems such as Hyperdent, Sum3D, WorkNC, Dental Softworks etc.
When do you use dry and when wet processing?
Dry systems for zirconia, NEM, PMMA and wax, wet systems for ceramics, composites and titanium.
What is an open system?
A CNC system that works independently of specific software or material providers.
How do I find the right machine?
The number of axes, materials, production volume and degree of automation are important criteria.
