Automated All-In-One Solution CORiTEC 350i series

5
Axes

12-fold auto-blank changer

20-fold
tool changer

60.000 rpm
Spindle power

CORiTEC 350i Loader

AIR COOLED SPINDLE
1kW power, 60.000 rpm

STABLE CHASSIS CONSTRUCTION
Steel/aluminium-based body structure

wet / dry processing
Integrated wet and dry processing

temperature compensation
High precision due to integrated temperature compensation

All-In-One Solution CORiTEC 350i HIGHLIGHTS

  • Zero point clamping system* for precise repositioning of blanks and adapters
  • 20-fold tool changer
  • Optional Ionizer possible
  • Stable 6 mm shaft tools
  • CORiTEC 350i Loader with 12-fold blank changer
  • Using different adapters is possible, e.g. prefabricated abutments or block materials
  • Optimal price-performance ratio

*Only optional for CORiTEC 350i

CORiTEC 350i PRO

air cooled SPINDle
1kW power, 60.000 rpm

Polymer concrete base
Revolutionary basic structure for the highest stability

high-dynamic servo drives
For up to 20% quicker processing

zero point clamping system
Standard

All-In-One Solution CORiTEC 350i PRO HIGHLIGHTS

    • Integrated wet and dry procressing
    • Optional Ionizer possible
    • Integrated temperature compensation
    • Absolute measuring system in all axes
    • Up to 20 % quicker processing
    • Suitable for 24-hour production operation
    • CORiTEC 350i Loader PRO with 12-fold blank changer

    CORiTEC 350i PRO+

    Water-cooled spindle
    2.6 kW spindle power, 60.000 rpm

    POLYMER cONCRETE BASE
    Revolutionary basic structure for the highest stability

    high-dynamic servo drives
    For up to 20% quicker processing

    STAINLESS STEEL BLANK HOLDER
    Highest stability and vibration-free processing

    All-In-One Solution CORiTEC 350i PRO+ HIGHLIGHTS

    • Integrated wet and dry processing
    • Integrated temperature compensation
    • Absolute measuring system in all axes
    • 50% faster roughing
    • Optimized for the highest surface quality and precision
    • Suitable for 24-hour production operation
    • Integrated zero point clamping system
    • Automatic tool shaft cleaning during tool changing
    • CORiTEC 350i Loader PRO+ with 12-fold blank changer
    2.6

    kW spindle power
    (CORiTEC 350i PRO+)



    6

    mm tool
    shaft diameter

    12

    Fold Blank changer
    (Loader variants)

    60.000

    rpm
    milling spindle

    For The Highest Demands Maximising performance

    The CORiTEC 350iseries is an innovative machine concept that meets all the requirements of the modern CAD/CAM process. The extremely stable construction enables the processing of all relevant materials in wet and dry machining. Optional with fully automatic 12-position blank changer, the system enables versatile machining in 24-hour operation. The zero-point clamping system offers maximum flexibility for a wide range of applicatitions.

    Telescopic technology

    Abutment

    Full Denture

    Bar constructions

    All-In-One Solution For highest demands

    • Zirconia
    • Pre-milled Abutment (Ti)
    • Pre-milled Abutment (CoCr)
    • Cobalt-chrome
    • Glass ceramic
    • Lithium disilicate
    • Hybrid ceramic
    • Sintered metal
    • Composite
    • PEEK
    • PMMA
    • Wax

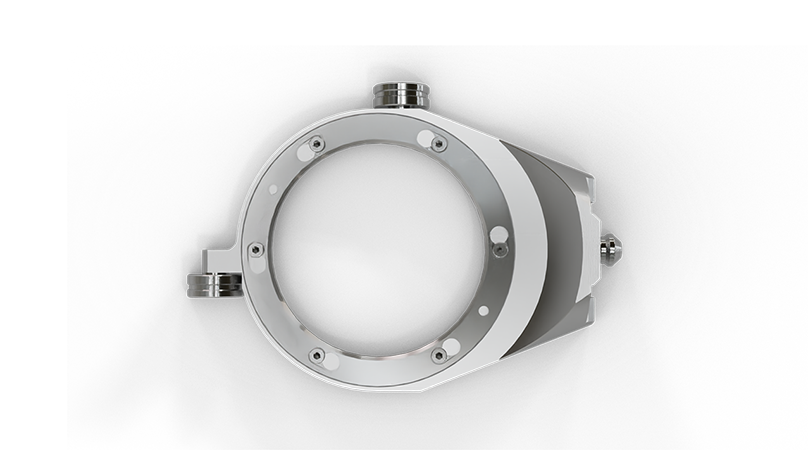

    Blank holder

    Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 350i series impresses in all areas.

    • Closed blank holder for high stability
    • Processing of all common materials in blank shape



    C-Clamp holder

    Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 350i series impresses in all areas.

    • Half-open blank holder
    • Enables 5-axis machining up to 90 degrees axis adjustment
    • Complex end face machining possible

    1-fold universal adapter

    Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 350i series impresses in all areas.

    • Base unit for processing of glass ceramics blocks and different abutment systems
    • Turn-milling processing possible



    Glass ceramics fixture for universal adapter

    Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 350i series impresses in all areas.

    • Suitable for 1-fold universal adapter of CORiTEC 350i series
    • Processing of all common materials (e.g., glass ceramics & lithium disilicate)



    Pre-milled universal holder

    Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 350i series impresses in all areas.

    • Suitable for 1-fold universal adapter of CORiTEC 350i series
    • High accuracy of fit due to predefined implant interfaces
    • Different kinds of abutment systems available (e.g., nt-trading, DESS, Medentika or Zfx)



    3-fold Glass ceramics fixture

    Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 350i series impresses in all areas.

    • Processing of up to 3 blocks at once possible
    • Processing of all common materials (e.g., glass ceramics & lithium disilicate)

    6-fold glass ceramics adapter

    Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 350i series impresses in all areas.

    • Processing of up to 6 blocks at once possible
    • Processing of all common materials (e.g., glass ceramics & lithium disilicate)



    6-fold pre-milled abutment holder

    Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 350i series impresses in all areas.

    • Processing of up to 6 pre-milled abutments at once possible
    • High accuracy of fit due to predefined implant interfaces
    • Different kinds of abutment systems available (e.g., nt-trading, DESS, Medentika or Zfx)

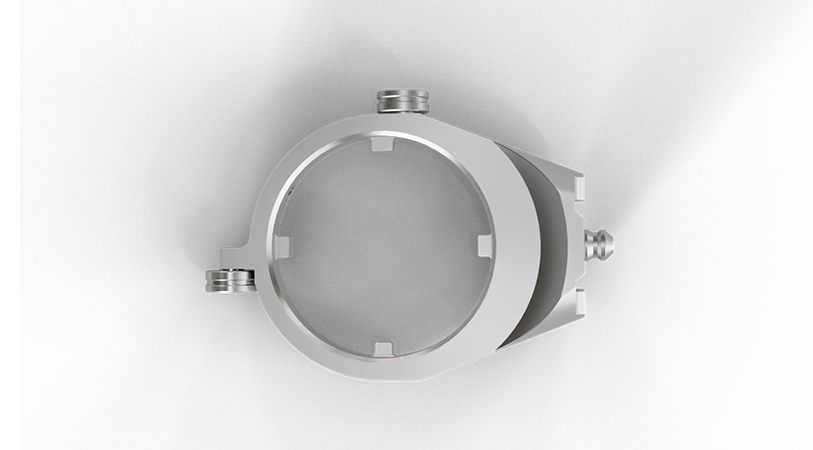

    Blank holder Baltic Denture

    Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 350i series impresses in all areas.

    • Closed blank holder for Merz Dental Baltic Denture System

    Indications

    Hybrid machining bei der CORiTEC 350i PRO und PRO+ möglich

    Machine Software CORiTEC Remote Dental 3.0

    The machine is operated with an integrated touchscreen display using the proven control software Remote Dental 3.0.

    • All important functions and control elements in one overview
    • Easy-to-use tool management
    • Tool runtime monitoring
    • Spare tool function
    • Language-neutral operation through intuitive graphical user interface
    • No license fees

    Smart High End Solution CORiTEC iCAM V5 smart

    • 5-axis simultaneous machining and/or 3 + 2 machining to reach undercuts
    • No annual license fees
    • Unlimited term
    • Fully automatic and easy operations with “Wizard Workflow“
    • „ReFit“-Abutment exchange geometries
    • Placing retaining bridges across jobs
    CORiTEC iCAM v5 - imes-icore
    CORiTEC iCAM v5 - imes-icore
    CORiTEC iCAM v5 - imes-icore

    CORiTEC iCAM V5 smart

    iCAM V5 smart is the high-end CAM solution from imes-icore®. The software enables high-precision milling data calculation in simultaneous 5-axis machining for best surface quality and fitting accuracy. Especially with hard materials such as glass ceramics, cobalt chrome or titanium, high-resolution milling data are decisive for best fitting accuracy. In addition, the tool life is increased by smooth running of the machine during machining. Thanks to predefined milling strategies developed by imes-icore® for all materials and applications, the iCAM V5 smart provides you with a valuable CAM solution that increases the productivity of the CAD/CAM system.

    Open To All Scenarios Integrated Workflow

    imes-icore offers a whole package including scanner, exocad CAD, iCAM CAM software, milling and grinding tools and CORiTEC milling machines.

    The integrated workflow for both wet and dry milling processes in combination with the highest level of stability offers process-reliable results for the highest demands.

    A perfect solution for remarkable results through a wide range of applications.

    All-In-One Solution Additional accessories

    The CORiTEC 350i series is compatible with scanners, exocad and impresses with its wide range of additional accessoires such as CAM software, sintering furnaces, extraction systems and machine tables.

    Accessories

    suction systems

    iVAC eco+:
    The iVAC eco+ is the universal solution for all table machines made by imes-icore. Technical Highlights: Very powerful, with a flow rate of up to 260m³/hr, adjustable power, brushless motor for a long service life; large-volume fi lter with 25 liter filter bags and a downline HEPA filter, runs quietly, suitable for imes-icore machine tables T1 and T2.

    Volume flow260m³/hr
    Output1200 W
    Filter system      dust drawer, HEPA filter
    Filter volume25 liters
    W x D x H
    (mm/inch)
    440 x 460 x 750/
    17.3 x 18.1 x 29.5
    Supply voltage115 V - 230 V

    Accessories

    suction systems

    iVAC silent PRO:
    The iVAC silent PRO is able to convince with its compact design and high-quality technology, all at an affordable price. Equipped with a Teflon filter cartridge with automated cleaning and dust drawer with a volume of 8 liters. A volume flow of 240 m³/hr makes it suitable for the CORiTEC one, 150i, 250i and 350i milling machines. The iVAC silent PRO fits the imes-icore machine tables T1 and T2.

    Volume flow240 m³/hr
    Output1610 W
    Filter system      Teflon filter cartridge,
    automatic cleaning feature
    Filter volume8 liters
    W x D x H
    (mm/inch)
    270 x 540 x 535/
    10.6 x 21.2 x 21.1
    Supply voltage115 V/230 V

    Accessories

    suction systems

    iVAC PRO+:
    Industrial vacuum system with brushless motor, 280m³/hr volume flow, adjustable power, filter system with Teflon filter cartridge and large dust drawer, automatic self-cleaning feature for compressed air, suitable for all imes-icore dental milling machines.

    Volume flow280 m³/hr
    Output1200 W
    Filter system      Teflon filter cartridge,
    automatic cleaning feature
    Filter volume15 liters
    W x D x H
    (mm/inch)
    350 x 350 x 1000/
    13.8 x 13.8 x 39.4
    Supply voltage115 V - 230 V

    Accessories

    Sintering Furnaces

    iSINT eco:
    The iSINT eco stands for economy and offers high-quality technology, matching accessories for high standards at a fair price. Compact and with a small footprint, the iSINT eco sintering oven still has sufficient capacity for a sintering bowl Ø100 mm for approx. 25 units. The door stop can be mounted right and left.

    Number of heating elements           4
    Display7-Segment
    Number of program memories         9
    Combustion chamber capacity1 x 100
    max. heating rate in °C/min30
    Power in W1720
    Lift functionNo
    SpeedsinteringNo

    Accessories

    Sintering Furnaces

    iSINT PRO:
    A larger sintering capacity of up to 80 single crowns is offered by the new iSINT PRO. With a heating system of four high-quality molybdenum disilicide (MoSi2) heating elements, you can choose between conventional long-term sintering or SPEED sintering at a rate of up to 99 °C/min / 210.20 °F/min. The iSINT PRO is operated with a simple and convenient program control. The programs are indicated on a 4-line LCD display. A timer function for overnight sintering or the use of pre-drying programs for shaded zirconium restorations offer further options. In addition, three service programs are available for easy maintenance of the sinter furnace.

    Number of heating elements           4
    Display4-line LCD
    Number of program memories         30
    Combustion chamber capacity2 x 120
    max. heating rate in °C/min99
    Power in W3200
    Lift functionYes
    SpeedsinteringYes

    Accessories

    Machine tables

    The undercounters, specially developed for the needs of the various machine types, impress with their sturdy design as well as their attractive appearance. The machine tables have sufficient floor space. Stable rollers ensure optimum stability and easy movement of the devices. Drawers, cable ducts and a cabinet for the integration of appropriate extraction systems are already provided.

    Machine table T1:
    W x H x D: 30.3 x 36.6 x 31.1 inch / 770 x 930 x 790 mm
    CORiTEC 350i
    CORiTEC 350i PRO
    CORiTEC 350i PRO+

    Accessories

    Machine tables

    The undercounters, specially developed for the needs of the various machine types, impress with their sturdy design as well as their attractive appearance. The machine tables have sufficient floor space. Stable rollers ensure optimum stability and easy movement of the devices. Drawers, cable ducts and a cabinet for the integration of appropriate extraction systems are already provided.

    Maschinentisch T2:
    W x H x D: 41.7 x 36.6 x 31.1 inch / 1060 x 930 x 790 mm
    CORiTEC 350i
    CORiTEC 350i PRO
    CORiTEC 350i PRO+

    Everything at a glance

    • Monitor
      CORiTEC 350i/Loader: integrated 12" touchscreen
      CORiTEC 350i PRO/Loader PRO:  integrated 15" HD touchscreen
      CORiTEC 350i PRO+/Loader PRO+: integrated 15" HD touchscreen
    • Control Software
      CORiTEC Remote Dental 3.0
      integrated CNC software
    • Blank changer
      CORiTEC 350i/PRO/PRO+: manual 1-fold blank holder
      CORiTEC 350i Loader/Loader PRO/Loader PRO+:  automatic 12 blank changer
    • Tool changer
      20-fold tool changer
    • Cooling
      4.8 liter / 18.17 gpm tank integrated
    • Air pressure
      External air pressure required
      6.5 - 9.0bar @ 80l/min
    • Tool length control
      ≤ 0.002 mm precision
    • Spindle type
      High frequency spindle
    • Max. rotational speed / spindle power
      CORiTEC 350i/Loader: 60.000 U/min, 1.0 kW
      CORiTEC 350i PRO/Loader PRO:  60.000 U/min, 1.0 kW
      CORiTEC 350i PRO+/Loader PRO+: 60.000 U/min, 2.6 KW
    • Tools
      Milling and grinding tools with 6 mm diameter

    Mechanics / Electronics

    • Number of axes and movement type
      5 axes, simultaneous machining
    • Rotation angle
      A-axis 360°
      B-axis 115°

    Connecting requirements

    • Weight
      CORiTEC 350i/PRO/PRO+:
      180 to 210 kg / 396.8 to 462.9 Ibs
      CORiTEC 350i Loader/Loader PRO/Loader PRO+:
      225 to 255 kg / 496.0 to 562.18 Ibs
    • Width x depth x height
      CORiTEC 350i/PRO/PRO+:
      758 x 790 x 857 mm / 29.8 x 31.1 x 33.7 inch
      CORiTEC 350i Loader /Loader PRO/Loader PRO+:
      1058 x 790 x 857 mm / 46.6 x 31.1 x 33.7 inch
    • Mains voltage / frequency / power
      Different for type of machines in series
