Metal Processing in the Smallest Space CORiTEC® 250i PRO+

5
Axes

Metal
Processing

Mono-block
cast body

2-fold integrated ionizer

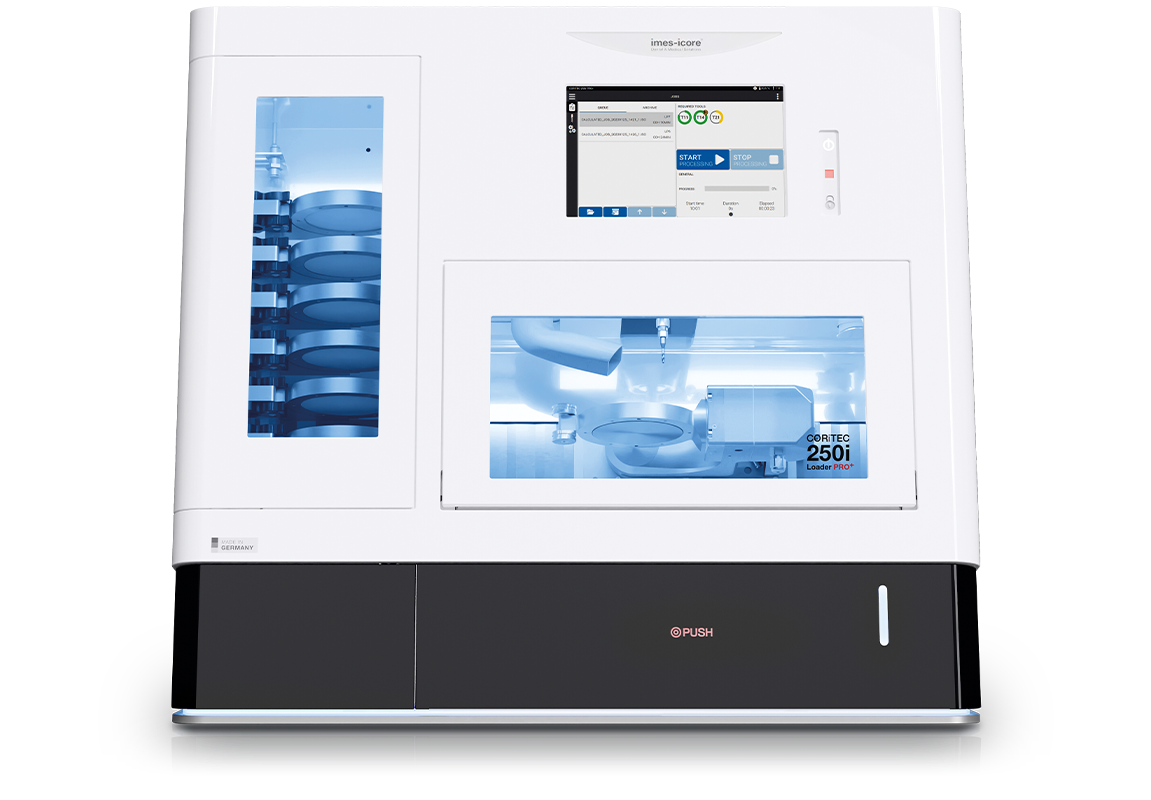

Highlights CORiTEC 250i PRO+ - front view

MONO-BLOCK CAST frame
New type of closed mono-block cast frame

Tools
with 6 mm shaft

10-FOLD AUTOMATIC TOOL CHANGER
Changable tool magazine

powerful milling spindle
60.000 rpm, 1.0 kW

Metal Processing in Smallest Space CORiTEC® 250i PRO+ Highlights

  • Wet and dry machining possible
  • Control PC and touch screen integrated
  • 2-fold ionizer integrated
  • Metal processing
  • High precision due to integrated temperature compensation
  • Powerful high frequency spindle
  • Minimal footprint
  • Auto calibration
  • Automated cleaning function
10

Fold
tool changer

6

mm
shaft tools

1.0

kW high
frequency spindle

5

Axis
machining

CORiTEC 250i PRO+ Maximising Performance

The perfect symbiosis of highly stable as well as low-vibration mono-block cast frame, optimally coordinated drives and the high-performance spindle allow perfect machining of metal blanks for the first time in this compact machine segment. In addition to excellent production quality, the CORiTEC 250i PRO+ impresses with maximum application range and an attractive price-performance ratio.

Full Denture

Crown, Bridge

Hybrid abutment

Inlay, Onlay, Veneer

Metal Processing In Smallest Space Wide Range of Applications

  • Zirconia
  • Pre-milled Abutment (Ti / CoCr)
  • Cobalt-chrome (CoCr)
  • Titanium (Ti)
  • Glass ceramic
  • Lithium disilicate
  • Hybrid ceramic
  • Sintered metal
  • Composite
  • PEEK
  • PMMA
  • Wax

Blank Holder

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i PRO+ impresses in all areas.

  • Closed blank holder for high stability
  • Processing of all common materials in blank shape

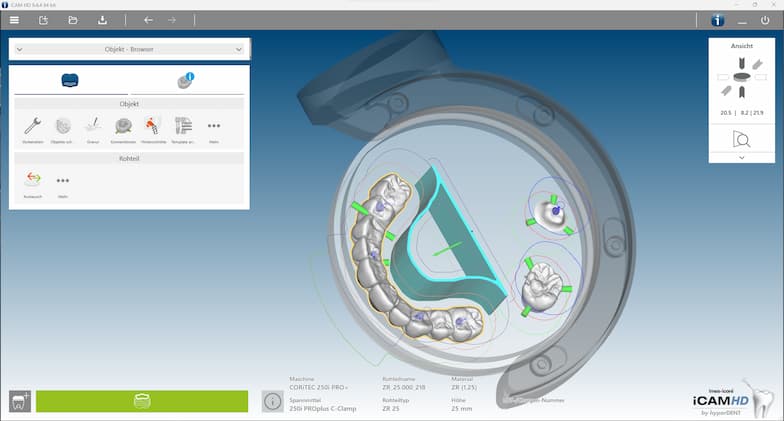

C-Clamp Holder

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i PRO+ impresses in all areas.

  • Half-open blank holder
  • Enables 5-axis machining up to 90 degrees axis adjustment
  • Complex end face machining possible

1-fold Universal Adapter

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i PRO+  impresses in all areas.

  • Base unit for processing of glass ceramics blocks and different abutment systems
  • Turn-milling processing possible



Glass Ceramics Fixture for Universal Adapter

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the  CORiTEC 250i PRO+ impresses in all areas.

  • Suitable for 1-fold universal adapter of  CORiTEC 250i PRO+
  • Processing of all common materials (e.g., glass ceramics & lithium disilicate)

Pre-milled Universal Holder

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the  CORiTEC 250i PRO+ impresses in all areas.

  • Suitable for 1-fold universal adapter of CORiTEC 250i PRO+
  • High accuracy of fit due to predefined implant interfaces
  • Different kinds of abutment systems available (e.g., nt-trading, DESS, Medentika or Zfx)

3-fold Glass Ceramics Fixture

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i PRO+ impresses in all areas.

  • Processing of up to 3 blocks at once possible
  • Processing of all common chairside materials (e.g., glass ceramics & lithium disilicate)

6-fold Glass Ceramics Adapter

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 150i series impresses in all areas.

  • Processing of up to 6 blocks at once possible
  • Processing of all common materials (e.g., glass ceramics & lithium disilicate)



6-fold Pre-milled Abutment Holder

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i PRO+ impresses in all areas.

  • Processing of up to 6 pre-milled abutments at once possible
  • High accuracy of fit due to predefined implant interfaces
  • Different kinds of abutment systems available (e.g., nt-trading, DESS, Medentika or Zfx)

Blank Holder Baltic Denture

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i PRO+ impresses in all areas.

  • Closed blank holder for Merz Dental Baltic Denture System

Indications

Intelligent Software CORiTEC® SmartControl

  • Modern design and simple touch operation
  • Intelligent selection of milling jobs
  • Easy tool and material loading
  • Auto-calibration of the machine
  • Wizard guided cleaning and maintenance
  • Connection to the Dental Smart Market (DSM)
  • Multilingual program interface
  • Automatic update function
CORiTEC 250i PRO+ - SmartControl - Overview
Real-time preview of milling data
CORiTEC 250i PRO+ - SmartControl - Tools
Simple and clear tool selection
CORiTEC 250i PRO+ - SmartControl - Tool manager
Ideal tool management

CORiTEC® SmartControl

The newly developed control software “SmartControlTM“ provides absolutely intuitive operation for our milling machine CORiTEC 250i PRO+. From selecting the job to milling or querying the machine status; the self-explanatory and optimized handling makes it possible to start operating the machine in the shortest possible time. Starting a milling process requires only two clicks – Use the benefit of the smart time saving in your workflow!

Smart High End Solution iCAM V5

  • 5-axis simultaneous machining and/or 3 + 2 machining to reach undercuts
  • No annual license fees
  • Unlimited term
  • Fully automatic and easy operations with “Wizard Workflow“
  • Placing retaining bridges across jobs

iCAM V5

iCAM V5 is the high-end CAM solution from imes-icore®. The software enables high-precision milling data calculation in simultaneous 5-axis machining for best surface quality and fitting accuracy. Especially with hard materials such as glass ceramics, cobalt chrome or titanium, high-resolution milling data are decisive for best fitting accuracy. In addition, the tool life is increased by smooth running of the machine during machining. Thanks to predefined milling strategies developed by imes-icore® for all materials and applications, the iCAM V5 provides you with a valuable CAM solution that increases the productivity of the CAD/CAM system.

iCAM V5 eco

  • enables you to perform 5-axis simultaneous machining for the CORiTEC 150i & 250i including implant module

iCAM V5 smart

  • offers 5-axis simultaneous machining for the CORiTEC 150i, 250i, 350i & 650i including implant module

iCAM V5 smart expert

  • offers 5-axis simultaneous machining for the CORiTEC 150i & 250i, 350i & 650i including access to the open development interface for the creation of own milling strategies

Smart High End Solution iCAMHD

  • High degree of automation
  • Efficient work due to support in job management
  • Fast training due to intuitive workflow
  • Individual management of the scope of processing options
  • Always up to date worldwide through optional rental model
  • Creation of individual quality standards by the user
  • Strategies for tool path generation for the highest surface quality
  • Complete collision monitoring

iCAMHD

iCAMHD eco

iCAMHD eco in combination with the CORiTEC 150i PRO and/or CORiTEC 250i PRO series represents the current state-of-the-art in the production of digitally created restorations in the laboratory.
The management of restoration parts, the intelligent workflow, the automatic blank management and the automatic nesting provide efficiency and reliability in the manufacturing process. The object management in iCAMHD automatically detects when new restorations have been designed in CAD and manages the status of the parts. Questions like „What must be manufactured?“ or „What has already been manufactured?“ will be answered by iCAMHD eco. Therefore, errors which occurred in the past are eliminated. All is completed by the possibility of processing of cobalt-chromium alloys. Thus, iCAMHD eco can handle a wide range of materials. Many blank holder options enable the processing of the blanks from all relevant suppliers of
prefabricated blanks to produce abutments. iCAMHD eco automatically finds the right blank and the right holder for the implant interface. The tool paths can be calculated after just three steps. Another highlight of the iCAMHD eco is the creation of individual quality standards by the user. For example, the quality of the surface or how it fits into cavities can be determined by the user. The required settings can be saved afterwards as a profile and used as a standard for the corresponding object type. You can also create appropriate quality profiles for various customer demands. This unique selling point of iCAMHD offers your laboratory the opportunity to expand the basis, based on countless tests with your own standards.
The new Update Center also informs the user about the latest technology. Automatic updates keep the user informed about new features and improvements in the set-up and enable him or her to install them directly.

iCAMHD eco dry

iCAMHD eco dry in combination with the CORiTEC 150i dry offers an economical solution for labs wishing to begin producing digitally created restorations without compromising the current state of the art in the field of CAM. Most indications can be manufactured with only dry processing. The intelligent management of orders and the automatic management of blanks ensure maximum efficiency and safety in the production of digitally created restorations. The intelligent and intuitive workflow saves valuable time and allows the dental technician to concentrate on more important tasks in the lab.

Open to All Scenarios Integrated Workflow

imes-icore offers a whole package including scanner, exocad dentalCAD, iCAM CAM-software, milling and grinding tools and CORiTEC milling machines.

An integrated workflow for both wet and dry milling process with minimum external compressed air offers process-reliable results.

A perfect solution for remarkable results through a variety of applications.



Metal Processing in Smallest Space Additional Accessories

The CORiTEC 250i PRO series  is compatible with all open scanners and impresses with its wide range of additional accessories such as CAM software, sintering furnaces, extraction systems and machine tables.

Accessories

Sintering Furnaces

iSINT eco:
The iSINT eco stands for economy and offers high-quality technology, matching accessories for high standards at a fair price. Compact and with a small footprint, the iSINT eco sintering oven still has sufficient capacity for a sintering bowl Ø100 mm for approx. 25 units. The door stop can be mounted right and left.

Number of heating elements            4
Display 7-Segment
Number of program memories          9
Combustion chamber capacity 1 x 100
max. heating rate in °C/min 30
Power in W 1720
Lift function No
Speedsintering No

Accessories

Sintering Furnaces

iSINT PRO:
A larger sintering capacity of up to 80 single crowns is offered by the new iSINT PRO. With a heating system of four high-quality molybdenum disilicide (MoSi2) heating elements, you can choose between conventional long-term sintering or SPEED sintering at a rate of up to 99 °C/min / 210.20 °F/min. The iSINT PRO is operated with a simple and convenient program control. The programs are indicated on a 4-line LCD display. A timer function for overnight sintering or the use of pre-drying programs for shaded zirconium restorations offer further options. In addition, three service programs are available for easy maintenance of the sinter furnace.

Number of heating elements            4
Display 4-line LCD
Number of program memories          30
Combustion chamber capacity 2 x 120
max. heating rate in °C/min 99
Power in W 3200
Lift function Yes
Speedsintering Yes

Accessories

suction systems

iVAC eco+:
The iVAC eco+ is the universal solution for all table machines made by imes-icore. Technical Highlights: Very powerful, with a flow rate of up to 260m³/hr, adjustable power, brushless motor for a long service life; large-volume fi lter with 25 liter fi lter bags and a downline HEPA filter, runs quietly, suitable for all imes-icore machine tables.

Volume flow 260m³/hr
Output 1200 W
Filter system       dust drawer, HEPA filter
Filter volume 25 liters
W x D x H
(mm/inch)
440 x 460 x 750/
17.3 x 18.1 x 29.5
Supply voltage 115 V - 230 V

Accessories

suction systems

iVAC silent PRO:
The iVAC silent PRO is able to convince with its compact design and high-quality technology, all at an affordable price. Equipped with a Teflon filter cartridge with automated cleaning and dust drawer with a volume of 8 liters. A volume flow of 240 m³/hr makes it suitable for the CORiTEC one, 150i, 250i and 350i milling machines. The iVAC silent PRO fits the imes-icore machine tables T1 and T2.

Volume flow 240 m³/hr
Output 1610 W
Filter system       Teflon filter cartridge,
automatic cleaning feature
Filter volume 8 liters
W x D x H
(mm/inch)
270 x 540 x 535/
10.6 x 21.2 x 21.1
Supply voltage 115 V/230 V

Accessories

Machine table

The undercounters, specially developed for the needs of the various machine types, impress with their sturdy design as well as their attractive appearance. The machine tables have sufficient floor space. Stable rollers ensure optimum stability and easy movement of the devices. Drawers, cable ducts and a cabinet for the integration of appropriate extraction systems are already provided.

Maschine table T2:
W x H x D: 41.7 x 36.6 x 31.1 inch / 1060 x 930 x 790 mm

Everything at a Glance

  • Monitor
    integrated 10'1" touchscreen
  • Control Software
    CORiTEC SmartControlTM
    integrated CNC software
  • Tool changer
     10-fold (magazine interchangeable)
  • Cooling
    3.7 liter / 18.17 gpm tank integrated
  • Air pressure
    External compressed air required
    7bar @ 60l/min
  • Tool length control
    ≤ 0.002 mm precision
  • Spindle type
    High frequency spindle
  • Max. rotational speed / spindle power
    60.000 rpm, 1.0 kW
  • Integrated PC
    Windows based
  • Milling and grinding tools
    6 mm toll shaft

Mechanics / Electronics

  • Number of axes and movement type
    5 axes, simultaneous machining
  • Rotation angle
    A-axis 360°
    B-axis up to ± 30°

Connecting Requirements

  • Weight
    95 kg / 209.4 lbs
  • Width x depth x height
    591 x 613 x 724 mm / 23.3 x 24.1 x 28.5 inch
  • Mains voltage / frequency / power
    100 V - 240 V / 50/60 Hz / 750 W
