Automation In The Smallest Space CORiTEC® 250i Loader PRO

5
Axes

2-fold integrated ionizer

Mono-block
cast body

7-fold
blank changer

CORiTEC 250i Loader PRO

MONO-BLOCK CAST BODY
Modern, closed mono block casting body for Stability and Precision

2-fold ionizer
Neutralizes the electrostatic charge of chips (PMMA, plastics)

FULL AUTOMATION
7 or 9 blanks in a blank magazine, changeable

16-FOLD Automatic TOOL changer
Changeable tool magazine

Automation In Smallest Space CORiTEC® 250i Loader PRO Highlights

  • Metal milling
  • Auto calibration
  • Automated cleaning function
  • Changeable blank magazine
  • 7-fold blank changer (9-fold optional)
  • No external PC required
  • Manual quick clamping system
  • Mono-block cast body
16

Fold
tool changer

7

Fold
blank changer
(optional 9-fold)

2

Fold
integrated ionizer

5

Axis
machining

Automation In Smallest Space Maximising performance

The CORiTEC 250i Loader PRO sets new standards when it comes to application variety. The system shows its strengths both in the automatic blank and tool change functions as well as in the dynamic milling and grinding process during wet and dry milling.

Full Denture

Crown, Bridge

Hybrid abutment

Inlay, Onlay, Veneer

Automation In Smallest Space Wide Range Of Applications

  • Zirconia
  • Pre-milled Abutment (Ti)
  • Pre-milled Abutment (CoCr)
  • Cobalt-chrome
  • Glass ceramic
  • Lithium disilicate
  • Hybrid ceramic
  • Sintered metal
  • Composite
  • PEEK
  • PMMA
  • Wax

Blank holder

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i Loader PRO impresses in all areas.

  • Closed blank holder for high stability
  • Processing of all common materials in blank shape

3-fold Glass ceramics fixture

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i Loader PRO impresses in all areas.

  • Processing of up to 3 blocks at once possible
  • Processing of all common materials (e.g., glass ceramics & lithium disilicate)

6-fold glass ceramics adapter

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i Loader PRO impresses in all areas.

  • Processing of up to 6 blocks at once possible
  • Processing of all common materials (e.g., glass ceramics & lithium disilicate)



6-fold pre-milled abutment holder

Each restoration is fabricated with optimum precision and flexibility to open up almost free choices of materials and indications. Whether wet or dry machining, block or blank form, the CORiTEC 250i Loader PRO impresses in all areas.

  • Processing of up to 6 pre-milled abutments at once possible
  • High accuracy of fit due to predefined implant interfaces
  • Different kinds of abutment systems available (e.g., nt-trading, DESS, Medentika or Zfx)

Indications

Intelligent Software CORiTEC® SmartControl

  • Modern touch control design
  • Automated transfer of information from the CAM software
  • Smart tool management
  • The easiest operation through intuitive graphical user interface
  • High end performance for imes-icore machines
  • Remote monitoring
  • Job management with 3D preview
  • Multi-language support
CORiTEC 250i Loader PRO - SmartControl - Overview
Real-time preview of milling data
CORiTEC 250i Loader PRO - SmartControl - Tools
Simple and clear tool selection
CORiTEC 250i Loader PRO - SmartControl - Tool manager
Ideal tool management

CORiTEC® SmartControl

The newly developed control software “SmartControlTM“ provides absolutely intuitive operation for our milling machine "CORiTEC 250i Loader PRO". From selecting the job to milling or querying the machine status; the self-explanatory and optimized handling makes it possible to start operating the machine in the shortest possible time. Starting a milling process requires only two clicks – Use the benefit of the smart time saving in your workflow!

Smart High End Solution iCAM V5

  • 5-axis simultaneous machining and/or 3 + 2 machining to reach undercuts
  • No annual license fees
  • Unlimited term
  • Fully automatic and easy operations with “Wizard Workflow“
  • „ReFit“-Abutment exchange geometries
  • Placing retaining bridges across jobs
CORiTEC iCAM v5 - imes-icore
CORiTEC iCAM v5 - imes-icore
CORiTEC iCAM v5 - imes-icore

iCAM V5

iCAM V5 is the high-end CAM solution from imes-icore®. The software enables high-precision milling data calculation in simultaneous 5-axis machining for best surface quality and fitting accuracy. Especially with hard materials such as glass ceramics, cobalt chrome or titanium, high-resolution milling data are decisive for best fitting accuracy. In addition, the tool life is increased by smooth running of the machine during machining. Thanks to predefined milling strategies developed by imes-icore® for all materials and applications, the iCAM V5 provides you with a valuable CAM solution that increases the productivity of the CAD/CAM system.

iCAM v5 eco

  • enables you to perform 5-axis simultaneous machining for the CORiTEC 150i & 250i including implant module

iCAM v5 smart

  • offers 5-axis simultaneous machining for the CORiTEC 150i, 250i, 350i & 650i including implant module

iCAM v5 smart expert

  • offers 5-axis simultaneous machining for the CORiTEC 150i & 250i, 350i & 650i including access to the open development interface for the creation of own milling strategies

Smart High End Solution iCAMHD

  • High degree of automation
  • Efficient work due to support in job management
  • Fast training due to intuitive workflow
  • Individual management of the scope of processing options
  • Worldwide “up to date” at any time through automatic update function
  • Creation of individual quality standards by the user
  • Strategies for tool path generation for the highest surface quality
  • Complete collision monitoring

iCAMHD

iCAMHD eco

iCAMHD eco in combination with the CORiTEC 150i PRO and/or CORiTEC 250i Loader PRO represents the current state-of-the-art in the production of digitally created restorations in the laboratory.
The management of restoration parts, the intelligent workflow, the automatic blank management and the automatic nesting provide efficiency and reliability in the manufacturing process. The object management in iCAMHD automatically detects when new restorations have been designed in CAD and manages the status of the parts. Questions like „What must be manufactured?“ or „What has already been manufactured?“ will be answered by iCAMHD eco. Therefore, errors which occurred in the past are eliminated. All is completed by the possibility of processing of cobalt-chromium alloys. Thus, iCAMHD eco can handle a wide range of materials. Many blank holder options enable the processing of the blanks from all relevant suppliers of
prefabricated blanks to produce abutments. iCAMHD eco automatically finds the right blank and the right holder for the implant interface. The tool paths can be calculated after just three steps. Another highlight of the iCAMHD eco is the creation of individual quality standards by the user. For example, the quality of the surface or how it fits into cavities can be determined by the user. The required settings can be saved afterwards as a profile and used as a standard for the corresponding object type. You can also create appropriate quality profiles for various customer demands. This unique selling point of iCAMHD offers your laboratory the opportunity to expand the basis, based on countless tests with your own standards.
The new Update Center also informs the user about the latest technology. Automatic updates keep the user informed about new features and improvements in the set-up and enable him or her to install them directly.

iCAMHD eco dry

iCAMHD eco dry in combination with the CORiTEC 150i dry offers an economical solution for labs wishing to begin producing digitally created restorations without compromising the current state of the art in the field of CAM. Most indications can be manufactured with only dry processing. The intelligent management of orders and the automatic management of blanks ensure maximum efficiency and safety in the production of digitally created restorations. The intelligent and intuitive workflow saves valuable time and allows the dental technician to concentrate on more important tasks in the lab.

Open To All Scenarios Integrated Workflow

imes-icore offers a whole package including scanner, exocad dentalCAD, iCAM CAM-software, milling and grinding tools and CORiTEC milling machines.

An integrated workflow for both wet and dry milling process with minimum external compressed air (Only 3 bar required) offers process-reliable results.

A perfect solution for remarkable results through a variety of applications.



    Automation In Smallest Space ADDITIONAL ACCESSORIES

    The CORiTEC 250i Loader PRO is compatible with scanners, exocad and impresses with its wide range of additional accessories such as CAM software, sintering furnaces, extraction systems and machine tables.

    Accessories

    Sintering Furnaces

    iSINT eco:
    The iSINT eco stands for economy and offers high-quality technology, matching accessories for high standards at a fair price. Compact and with a small footprint, the iSINT eco sintering oven still has sufficient capacity for a sintering bowl Ø100 mm for approx. 25 units. The door stop can be mounted right and left.

    Number of heating elements           4
    Display7-Segment
    Number of program memories         9
    Combustion chamber capacity1 x 100
    max. heating rate in °C/min30
    Power in W1720
    Lift functionNo
    SpeedsinteringNo

    Accessories

    Sintering Furnaces

    iSINT PRO:
    A larger sintering capacity of up to 80 single crowns is offered by the new iSINT PRO. With a heating system of four high-quality molybdenum disilicide (MoSi2) heating elements, you can choose between conventional long-term sintering or SPEED sintering at a rate of up to 99 °C/min / 210.20 °F/min. The iSINT PRO is operated with a simple and convenient program control. The programs are indicated on a 4-line LCD display. A timer function for overnight sintering or the use of pre-drying programs for shaded zirconium restorations offer further options. In addition, three service programs are available for easy maintenance of the sinter furnace.

    Number of heating elements           4
    Display4-line LCD
    Number of program memories         30
    Combustion chamber capacity2 x 120
    max. heating rate in °C/min99
    Power in W3200
    Lift functionYes
    SpeedsinteringYes

    Accessories

    suction systems

    iVAC eco+:
    The iVAC eco+ is the universal solution for all table machines made by imes-icore. Technical Highlights: Very powerful, with a flow rate of up to 260m³/hr, adjustable power, brushless motor for a long service life; large-volume fi lter with 25 liter fi lter bags and a downline HEPA filter, runs quietly, suitable for all imes-icore machine tables.

    Volume flow260m³/hr
    Output1200 W
    Filter system      dust drawer, HEPA filter
    Filter volume25 liters
    W x D x H
    (mm/inch)
    440 x 460 x 750/
    17.3 x 18.1 x 29.5
    Supply voltage115 V - 230 V

    Accessories

    suction systems

    iVAC PRO+:
    Industrial vacuum system with brushless motor, 280m³/hr volume flow, adjustable power, filter system with Teflon filter cartridge and large dust drawer, automatic self-cleaning feature for compressed air, suitable for all imes-icore dental milling machines.

    Volume flow280 m³/hr
    Output1200 W
    Filter system      Teflon filter cartridge,
    automatic cleaning feature
    Filter volume15 liters
    W x D x H
    (mm/inch)
    350 x 350 x 1000/
    13.8 x 13.8 x 39.4
    Supply voltage115 V - 230 V

    Accessories

    Machine tables

    The undercounters, specially developed for the needs of the various machine types, impress with their sturdy design as well as their attractive appearance. The machine tables have sufficient floor space. Stable rollers ensure optimum stability and easy movement of the devices. Drawers, cable ducts and a cabinet for the integration of appropriate extraction systems are already provided.

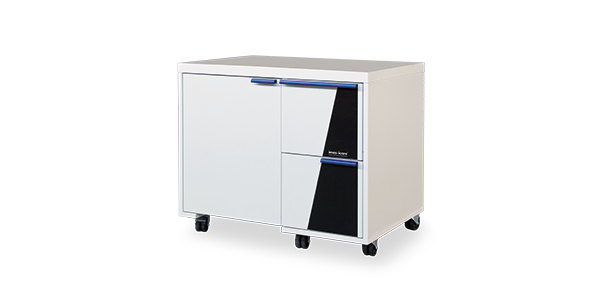

    Maschine table T2:
    W x H x D: 41.7 x 36.6 x 31.1 inch / 1060 x 930 x 790 mm

    Everything at a glance

    • Monitor
      integrated 10'1" touchscreen
    • Control Software
      CORiTEC SmartControlTM
      ­integrated CNC software
    • Blank changer
      automatic up to 7 blank holder (9-fold optional)
    • Tool changer
      16-fold (magazine interchangeable)
    • Cooling
      4.8 liter / 18.17 gpm tank integrated
    • Air pressure
      External compressed air required
      7bar @ 60l/min
    • Tool length control
      ≤ 0.002 mm precision
    • Spindle type
      High frequency spindle
    • Max. rotational speed / spindle power
      100.000 rpm, 750 Watt
    • Integrated PC
      Windows based
    • Tools
      Milling and grinding tools with 3 mm tool shaft

    Mechanics / Electronics

    • Number of axes and movement type
      5 axes, simultaneous machining
    • Rotation angle
      A-axis 360°
      B-axis up to ± 30°

    Connecting requirements

    • Weight
      110 kg / 242.5 Ibs
    • Width x depth x height
      790 x 613 x 724 mm / 31.1 x 24.1 x 28.5 inch
    • Mains voltage / frequency / power
      100 V - 240 V / 50/60 Hz / 750 W
